Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

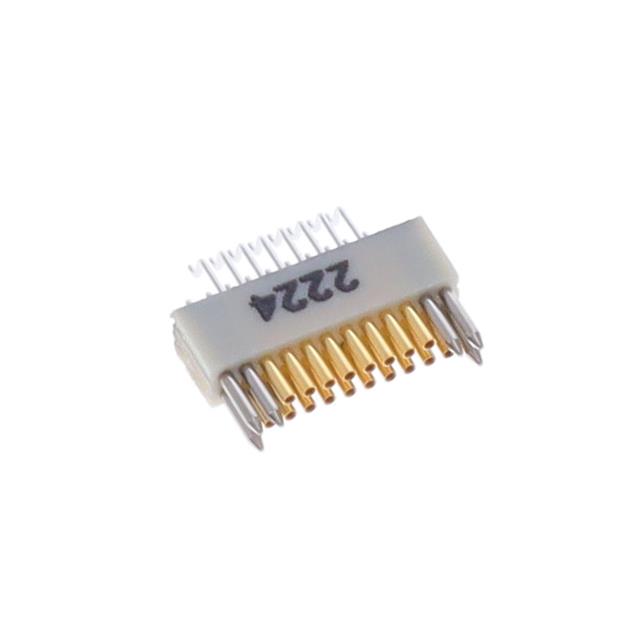

18 Position Receptacle Connector 0.025" (0.64mm) Surface Mount, Right Angle Gold
Specifications
- Mfr
- Omnetics
- Style
- Board to Board
- Series
- Nano Strip
- Features
- Guide Pin
- Packaging
- Case
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Circular
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
Pitch - Mating0.025" (0.64mm) Contact MaterialCopper Alloy Insulation Height0.070" (1.78mm) Insulation MaterialThermoplastic Row Spacing - Mating0.030" (0.76mm) Contact Finish - PostTin-Lead Current Rating (Amps)1A per Contact Operating Temperature-55°C ~ 125°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating50.0µin (1.27µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Case | 1 | ¥991.26000 |
| Case | 10 | ¥842.63500 |
| Case | 100 | ¥728.30280 |
