Description

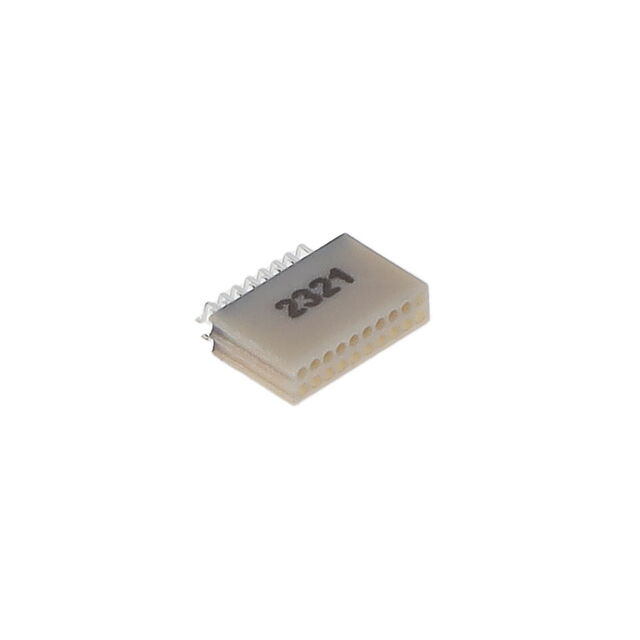

Connector Header Surface Mount, Right Angle 18 position 0.025" (0.64mm)
Specifications
- Mfr
- Omnetics
- Style
- Board to Cable/Wire
- Series
- Nano Strip
- Features
- Guide Pin
- Packaging
- Case
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Circular
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Pitch - Mating0.025" (0.64mm) Contact MaterialBeryllium Copper Insulation Height0.070" (1.78mm) Insulation MaterialThermoplastic Row Spacing - Mating0.030" (0.76mm) Contact Finish - PostTin-Lead Current Rating (Amps)1A per Contact Operating Temperature-55°C ~ 125°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating50.0µin (1.27µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Case | 1 | ¥663.86000 |
| Case | 10 | ¥564.32300 |
| Case | 100 | ¥479.77200 |
