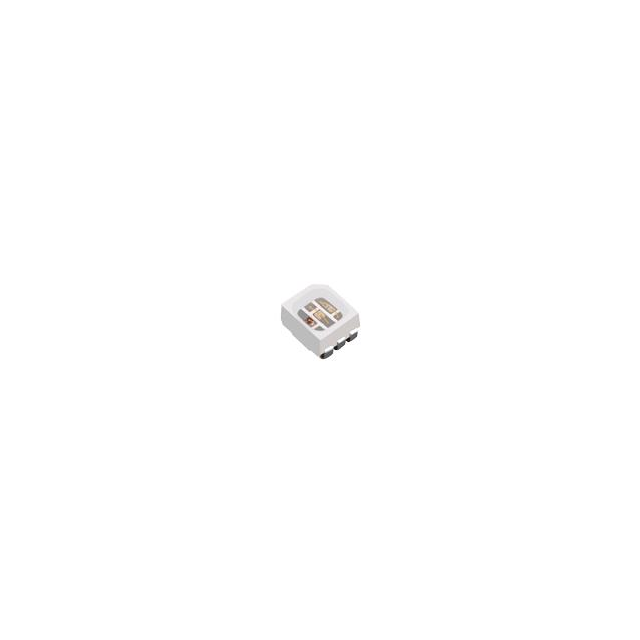

AAAF3529VBDSEJ3ZGS
LED RGB CLEAR CHIP SMD
Manufacturer: KingbrightIC code: 754-AAAF3529VBDSEJ3ZGSTR-ND - Tape & Reel (TR) || 754-AAAF3529VBDSEJ3ZGSCT-ND - Cut Tape (CT) || 754-AAAF3529VBDSEJ3ZGSDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.3V Green, 3.3V Blue 6-PLCC
Specifications
- Mfr
- Kingbright
- Color
- Red, Green, Blue (RGB)
- Series
- -
- Features
- -
- Lens Size
- 2.44mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- Colorless
- Lens Style
- Square with Flat Top
- Part Status
- Active
- Height (Max)
- 1.85mm
- Configuration
- Independent
- Mounting Type
- Surface Mount
- Viewing Angle
Current - Test20mA Red, 20mA Green, 20mA Blue Size / Dimension3.20mm L x 2.80mm W Wavelength - Peak640nm Red, 515nm Green, 465nm Blue Base Product NumberAAAF3529 Millicandela Rating560mcd Red, 580mcd Green, 300mcd Blue Wavelength - Dominant625nm Red, 525nm Green, 470nm Blue Supplier Device PackageChip LED Voltage - Forward (Vf) (Typ)2.2V Red, 3.3V Green, 3.3V Blue Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥12.40000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥8.82400 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥6.63830 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥5.67190 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥5.35622 |
| Tape & Reel (TR) | 2,000 | ¥5.08865 |
| Tape & Reel (TR) | 4,000 | ¥4.86197 |
| Tape & Reel (TR) | 6,000 | ¥4.74589 |
| Tape & Reel (TR) | 10,000 | ¥4.61489 |
| Tape & Reel (TR) | 14,000 | ¥4.53706 |
