Description

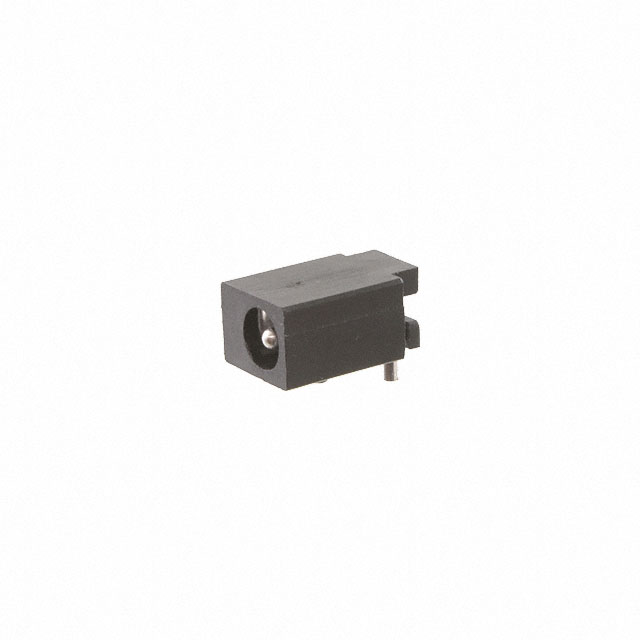

Power Barrel Connector Jack 1.70mm ID (0.067"), 4.00mm OD (0.157") Through Hole, Right Angle
Specifications
- Gender
- Male
- Series
- ADC
- Features
- Board Guide
- Includes
- -
- Packaging
- Bag
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Adam Tech
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.065" (1.65mm ID), 0.173" (4.40mm OD) Contact MaterialCopper Alloy Housing MaterialPolybutylene Terephthalate (PBT) Internal Switch(s)Single Switch, Normally Closed Base Product NumberADC-055B Operating Temperature-20°C ~ 70°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.70mm ID (0.067"), 4.00mm OD (0.157") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥5.46000 |
| Bag | 10 | ¥4.63900 |
| Bag | 25 | ¥4.35320 |
| Bag | 50 | ¥4.14320 |
| Bag | 100 | ¥3.94560 |
| Bag | 250 | ¥3.69768 |
| Bag | 500 | ¥3.52120 |
| Bag | 1,000 | ¥3.35290 |
| Bag | 3,000 | ¥3.10279 |
