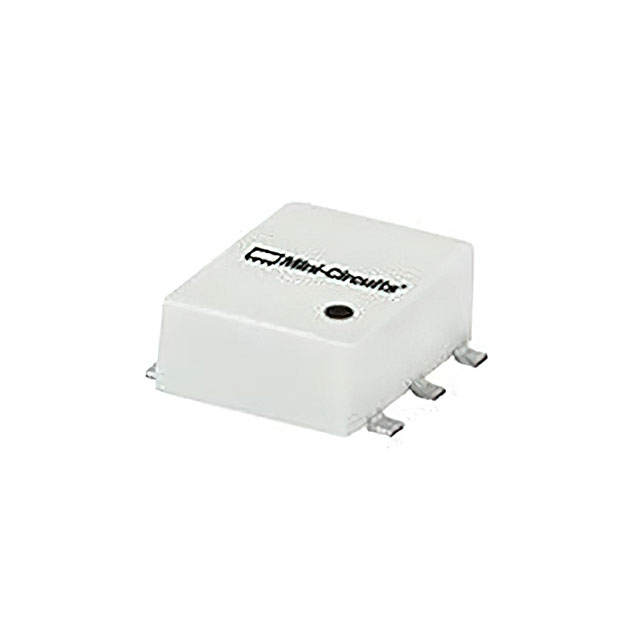

ADCH-80A+
RF FILTER BANDPASS 5.025GHZ 6SMD
Manufacturer: Mini-CircuitsIC code: 3157-ADCH-80A+TR-ND - Tape & Reel (TR) || 3157-ADCH-80A+CT-ND - Cut Tape (CT) || 3157-ADCH-80A+DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
5.025GHz Center Frequency Band Pass RF Filter (Radio Frequency) 9.95GHz Bandwidth 2dB 6-SMD, Flat Leads
Specifications
- Ripple
- -
- Series
- -
- Bandwidth
- 9.95GHz
- Frequency
- 5.025GHz Center
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Filter Type
- Band Pass
- Part Status
- Active
- Height (Max)
- 0.112" (2.84mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 2dB
- Package / Case
- 6-SMD, Flat Leads
- Size / Dimension
