ADID-R-0004

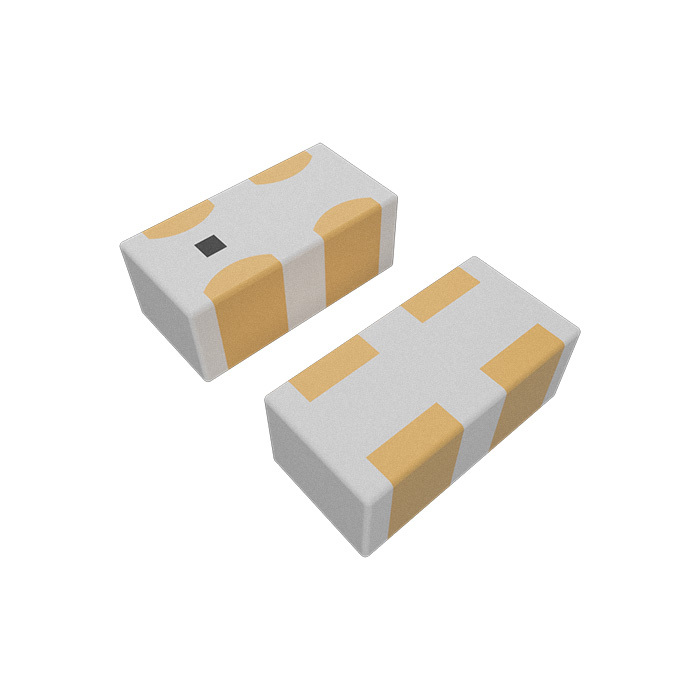

Multi-Layer Chip Diplexer
Manufacturer: Abracon LLCIC code: 535-ADID-R-0004TR-ND - Tape & Reel (TR) || 535-ADID-R-0004CT-ND - Cut Tape (CT) || 535-ADID-R-0004DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 2.4GHz ~ 2.5GHz / 5.15GHz ~ 7.125GHz 0402 (1005 Metric)
Specifications
- Type
- Diplexer
- Grade
- -
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Abracon LLC
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 0402 (1005 Metric)
- Frequency Bands (Low / High)
- 2.4GHz ~ 2.5GHz / 5.15GHz ~ 7.125GHz
- Return Loss (Low Band / High Band)
- 10.0dB / 10.0dB
- Low Band Attenuation (min / max dB)
- 20.00dB / -
