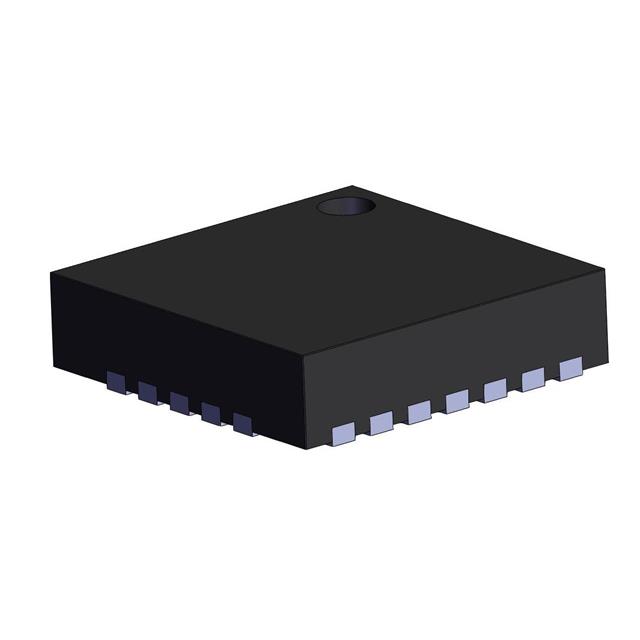

ADL5372ACPZ-WP
F-MOD QUADRATURE MODULATOR
Manufacturer: Analog Devices Inc.IC code: 2156-ADL5372ACPZ-WP-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Modulator IC 1.5GHz ~ 2.5GHz 24-WFQFN Exposed Pad, CSP
Specifications
- P1dB
- 12.4dBm
- Series
- -
- Function
- Modulator
- Packaging
- Bulk
- Noise Floor
- -158.5dBm/Hz
- Part Status
- Active
- LO Frequency
- 1.5GHz ~ 2.5GHz
- Manufacturer
- Analog Devices Inc.
- Output Power
- 7.2dBm
- RF Frequency
- 1.5GHz ~ 2.5GHz
- Mounting Type
- Surface Mount
- Package / Case
- 24-WFQFN Exposed Pad, CSP
- Test Frequency
- 1.9GHz
- Current - Supply
- 165 mA
- Voltage - Supply
- 4.75V ~ 5.25V
- Supplier Device Package
- 24-LFCSP-WQ (4x4)
