ADL5506ACBZ-R7
IC RF DETECT 30MHZ-4.5GHZ 6WLCSP
Manufacturer: Analog Devices Inc.IC code: 505-ADL5506ACBZ-R7TR-ND - Tape & Reel (TR) || 505-ADL5506ACBZ-R7CT-ND - Cut Tape (CT) || 505-ADL5506ACBZ-R7DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Detector IC General Purpose 30MHz ~ 4.5GHz -45dBm ~ 5dBm ±1dB 6-XFBGA, WLCSP
Specifications
- Series
- -
- RF Type
- General Purpose
- Accuracy
- ±1dB
- Frequency
- 30MHz ~ 4.5GHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Input Range
- -45dBm ~ 5dBm
- Part Status
- Active
- Manufacturer
- Analog Devices Inc.
- Mounting Type
- Surface Mount
- Package / Case

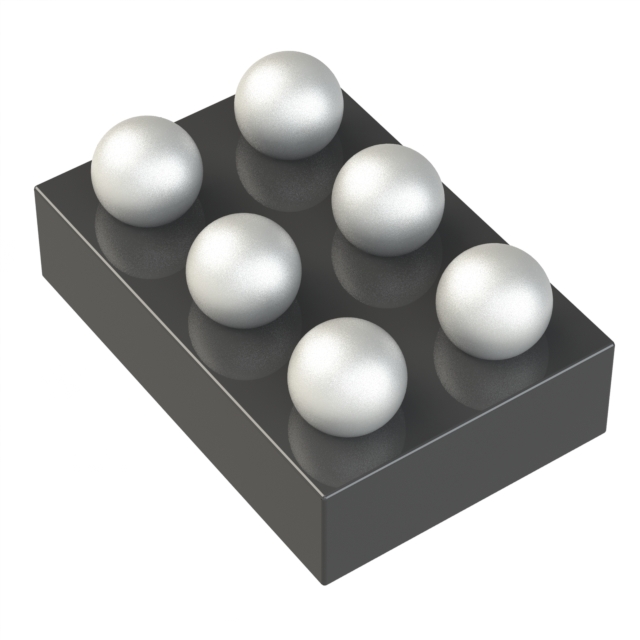

- 6-XFBGA, WLCSP
- Current - Supply
- 3.8 mA
- Voltage - Supply
- 2.5V ~ 5.5V
- Base Product Number
