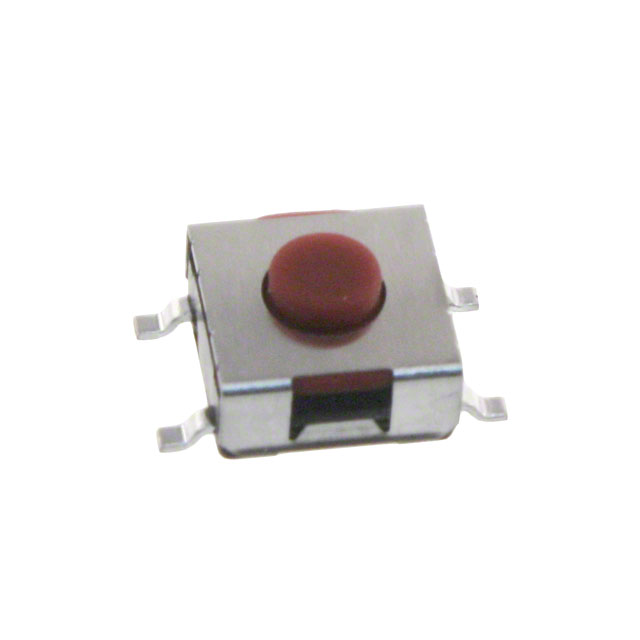

ADTSMW69NVTR
SWITCH TACTILE SPST-NO 0.05A 12V
Manufacturer: APEM Inc.IC code: 679-2392-2-ND - Tape & Reel (TR) || 679-2392-1-ND - Cut Tape (CT) || 679-2392-6-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- APEM Inc.
- Series
- ADTS
- Circuit
- SPST-NO
- Outline
- 6.30mm x 6.20mm
- Features
- Washable
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.45mm
- Mechanical Life
- -
- Operating Force
- 180gf
Actuator MaterialPolyamide (PA), Nylon Termination StyleGull Wing Base Product NumberADTSMW6 Actuator OrientationTop Actuated Operating Temperature-25°C ~ 70°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical3.80mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥13.65000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥11.56100 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥10.73440 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥9.56180 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥8.86476 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥8.38528 |
| Tape & Reel (TR) | 1,900 | ¥7.58576 |
| Tape & Reel (TR) | 3,800 | ¥7.23424 |
| Tape & Reel (TR) | 5,700 | ¥7.04792 |
| Tape & Reel (TR) | 9,500 | ¥6.83242 |
