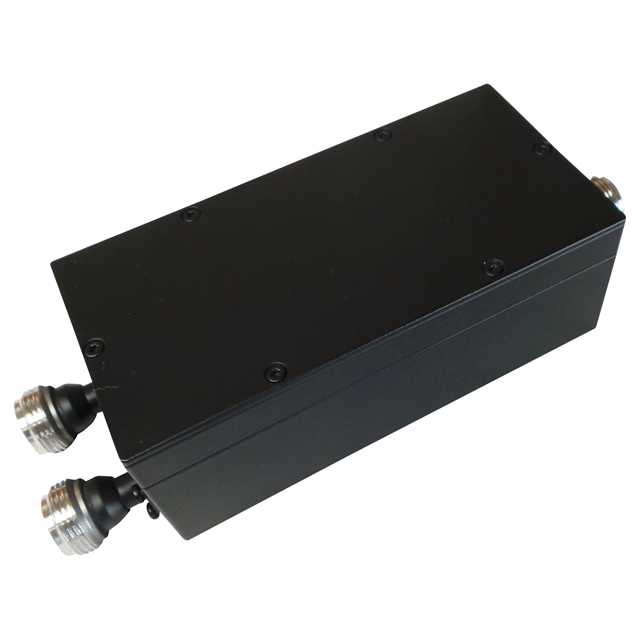

AE1745-2155DB5472
1745 MHZ / 2155 MHZ CAVITY DUPLE
Manufacturer: Anatech Electronics Inc.IC code: 3078-AE1745-2155DB5472-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Duplexer 1.71GHz ~ 1.78GHz / 2.11GHz ~ 2.2GHz Module
Specifications
- Type
- Duplexer
- Series
- -
- Packaging
- Box
- Part Status
- Active
- Manufacturer
- Anatech Electronics Inc.
- Mounting Type
- Chassis Mount
- Package / Case
- Module
- Frequency Bands (Low / High)
- 1.71GHz ~ 1.78GHz / 2.11GHz ~ 2.2GHz
- Return Loss (Low Band / High Band)
- 15.0dB / 15.0dB
- Low Band Attenuation (min / max dB)
- -
- High Band Attenuation (min / max dB)
- -
