AE255-305DB5288

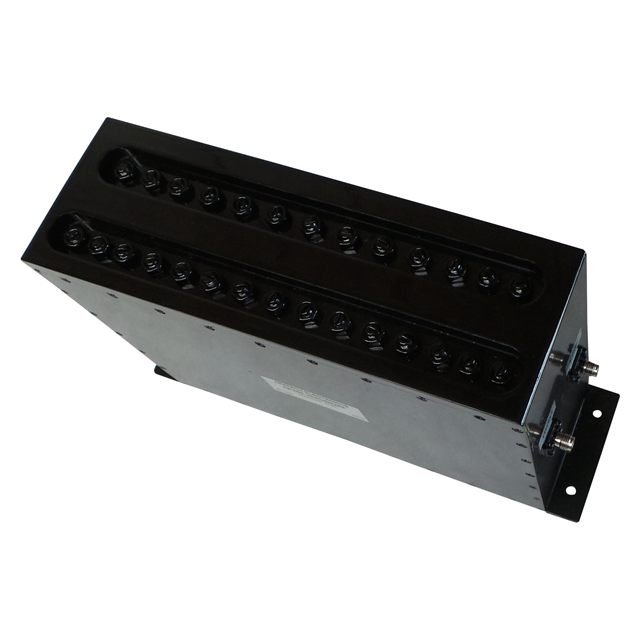

255 MHZ / 305 MHZCAVITY DUPLEXER
Manufacturer: Anatech Electronics Inc.IC code: 3078-AE255-305DB5288-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 240MHz ~ 270MHz / 290MHz ~ 320MHz Module
Specifications
- Type
- Diplexer
- Series
- -
- Packaging
- Box
- Part Status
- Active
- Manufacturer
- Anatech Electronics Inc.
- Mounting Type
- Chassis Mount
- Package / Case
- Module
- Frequency Bands (Low / High)
- 240MHz ~ 270MHz / 290MHz ~ 320MHz
- Return Loss (Low Band / High Band)
- 17.0dB / 17.0dB
- Low Band Attenuation (min / max dB)
- -
- High Band Attenuation (min / max dB)
- -
