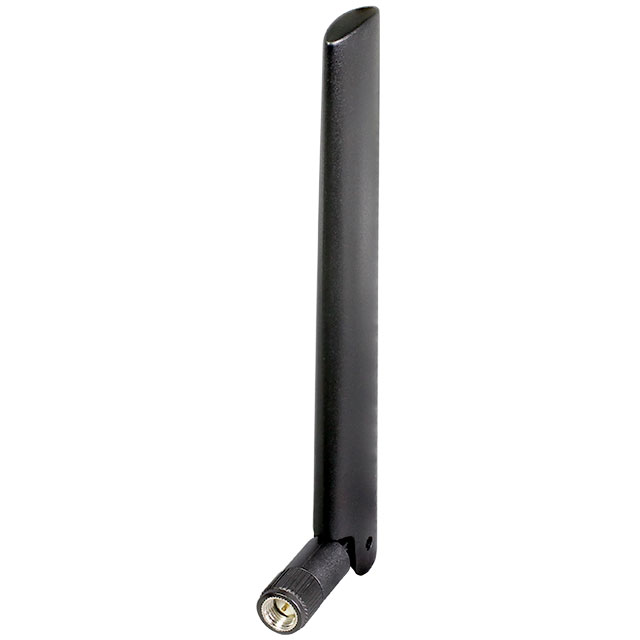

ANT-5GWWS1-SMA
RF ANT 617MHZ-5GHZ 5G TILT SMA
Manufacturer: TE Connectivity LinxIC code: 343-ANT-5GWWS1-SMA-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF ANTENNA 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS Blade, Tilt SMA Male Connector Mount
Specifications
- Gain
- 0.8dBi, 0.5dBi, 0.7dBi, 4dBi, 4dBi, 4dBi, 2.5dBi, 2.2dBi, 3.5dBi
- VSWR
- 3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8
- Series
- 5GW
- Features
- -
- Packaging
- Bag
- Part Status
- Active
- Power - Max
- 5 W
- Return Loss
- -5.8dB, -10.9dB, -6.5dB, 10.9dB, -10.2dB, -4.6dB, 10.9dB, -5.6dB, -10.9dB
- Termination
- SMA Male
- Antenna Type
- Blade, Tilt
- Applications
- 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS
- Height (Max)
- 5.340" (135.70mm)
