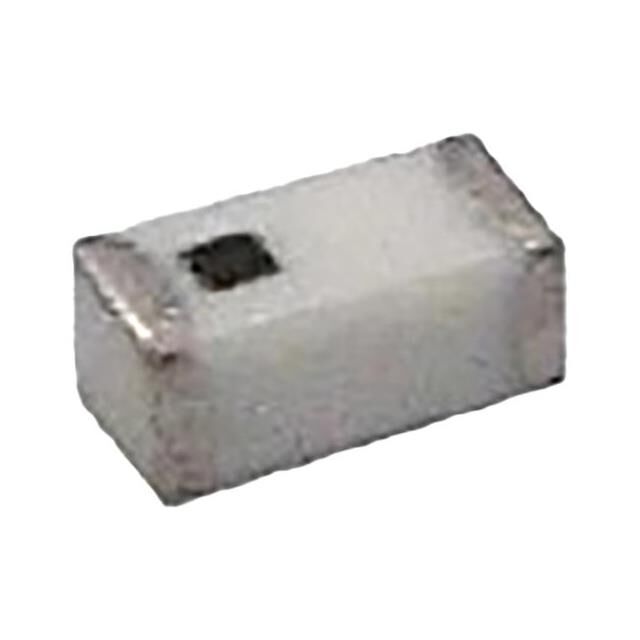

ANT3216LL02R6580A
3216 UWB 6.5-8GHZ CHIP ANTENNA
Manufacturer: Pulse ElectronicsIC code: 553-ANT3216LL02R6580ATR-ND - Tape & Reel (TR) || 553-ANT3216LL02R6580ACT-ND - Cut Tape (CT) || 553-ANT3216LL02R6580ADKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF ANTENNA UWB Chip Solder Surface Mount
Specifications
- Gain
- 7.3dBi
- VSWR
- -
- Grade
- Automotive
- Series
- 3216
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Power - Max
- 1 W
- Return Loss
- 10dB
- Termination
- Solder
- Antenna Type
- Chip
- Applications
- UWB
- Height (Max)
- 0.047" (1.20mm)
