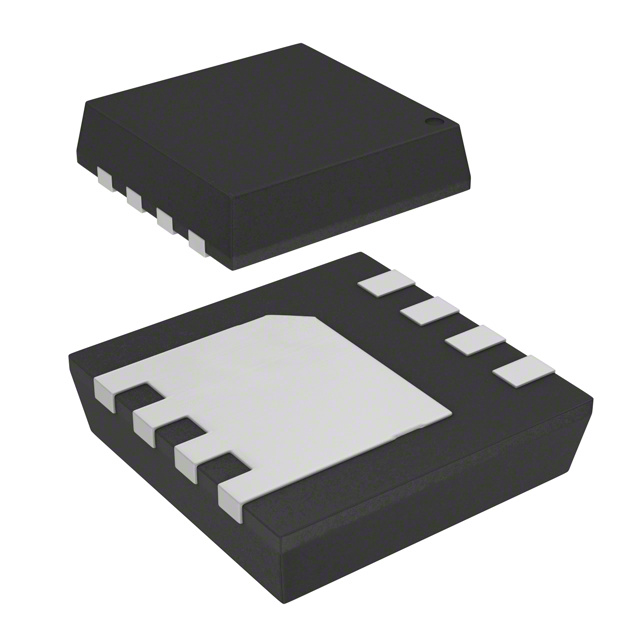

AON7242
MOSFET N-CH 40V 30A/50A 8DFN
Manufacturer: Alpha & Omega Semiconductor Inc.IC code: 785-1378-2-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 40 V 30A (Ta), 50A (Tc) 6.2W (Ta), 83W (Tc) Surface Mount 8-DFN-EP (3.3x3.3)
Specifications
- Mfr
- Alpha & Omega Semiconductor Inc.
- Grade
- -
- Series
- -
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR)
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 8-PowerWDFN
- Vgs(th) (Max) @ Id
- 2.3V @ 250µA
- Base Product Number
- AON72
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 3.9mOhm @ 20A, 10V
- Power Dissipation (Max)
- 6.2W (Ta), 83W (Tc)
- Supplier Device Package
- 8-DFN-EP (3.3x3.3)
