Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

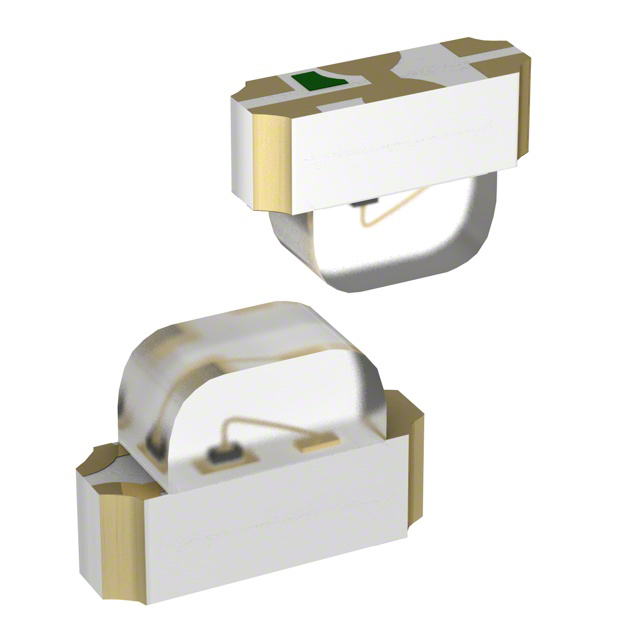

Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red 3-SMD, No Lead
Specifications
- Mfr
- Kingbright
- Color
- Green, Red
- Series
- -
- Features
- -
- Lens Size
- 2.00mm x 1.00mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- Colorless
- Lens Style
- Rectangle with Domed Top
- Part Status
- Active
- Height (Max)
- 1.00mm
- Configuration
- Common Anode
- Mounting Type
- Surface Mount, Right Angle
- Viewing Angle
- 140°
Current - Test20mA Green, 20mA Red Package / Case3-SMD, No Lead Size / Dimension3.00mm L x 2.00mm W Wavelength - Peak565nm Green, 627nm Red Base Product NumberAPBA3010 Millicandela Rating15mcd Green, 8mcd Red Wavelength - Dominant568nm Green, 617nm Red Supplier Device PackageChip LED Voltage - Forward (Vf) (Typ)2.2V Green, 2V Red Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.47000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.37300 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.69450 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.38588 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.28416 |
| Tape & Reel (TR) | 2,000 | ¥1.19754 |
| Tape & Reel (TR) | 4,000 | ¥1.12395 |
| Tape & Reel (TR) | 6,000 | ¥1.08620 |
| Tape & Reel (TR) | 10,000 | ¥1.04350 |
| Tape & Reel (TR) | 14,000 | ¥1.01810 |
| Tape & Reel (TR) | 20,000 | ¥0.99330 |
| Tape & Reel (TR) | 50,000 | ¥0.93856 |
