Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

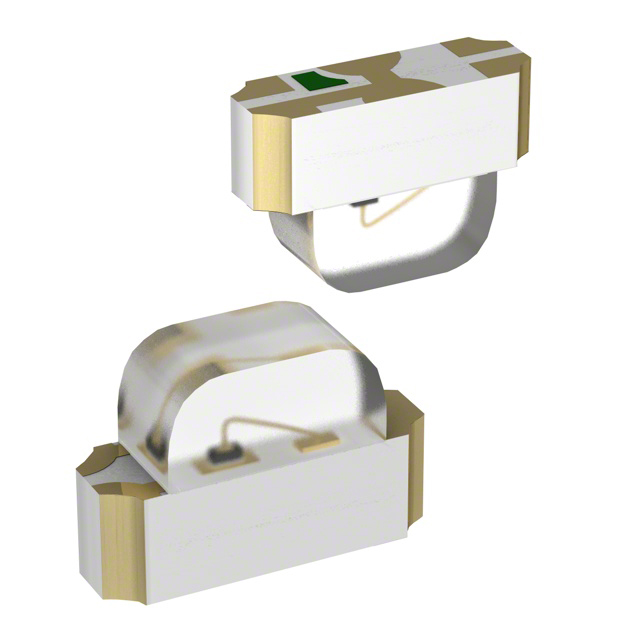

Red, Yellow 617nm Red, 588nm Yellow LED Indication - Discrete 2V Red, 2.1V Yellow 3-SMD, No Lead
Specifications
- Mfr
- Kingbright
- Color
- Red, Yellow
- Series
- -
- Features
- -
- Lens Size
- 2.00mm x 1.00mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- Colorless
- Lens Style
- Rectangle with Domed Top
- Part Status
- Active
- Height (Max)
- 1.00mm
- Configuration
- Common Anode
- Mounting Type
- Surface Mount, Right Angle
- Viewing Angle
- 140°
Current - Test20mA Red, 20mA Yellow Package / Case3-SMD, No Lead Size / Dimension3.00mm L x 2.00mm W Wavelength - Peak627nm Red, 590nm Yellow Base Product NumberAPBA3010 Millicandela Rating8mcd Red, 8mcd Yellow Wavelength - Dominant617nm Red, 588nm Yellow Supplier Device PackageChip LED Voltage - Forward (Vf) (Typ)2V Red, 2.1V Yellow Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.72000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.53100 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.81110 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.48396 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.37637 |
| Tape & Reel (TR) | 2,000 | ¥1.28475 |
| Tape & Reel (TR) | 4,000 | ¥1.20692 |
| Tape & Reel (TR) | 6,000 | ¥1.16698 |
| Tape & Reel (TR) | 10,000 | ¥1.12185 |
| Tape & Reel (TR) | 14,000 | ¥1.09499 |
| Tape & Reel (TR) | 20,000 | ¥1.06879 |
| Tape & Reel (TR) | 50,000 | ¥1.01093 |
