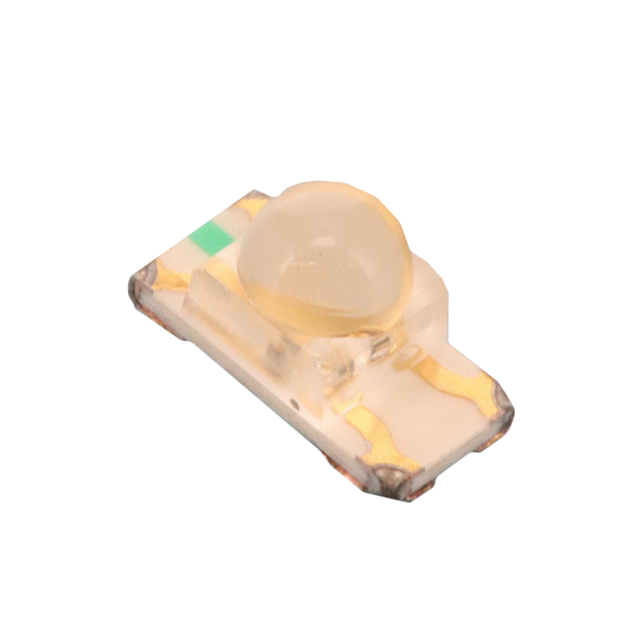

APTBD3216SURKCGKC-01
LED GREEN/RED CLEAR 1206 SMD
Manufacturer: KingbrightIC code: 754-APTBD3216SURKCGKC-01TR-ND - Tape & Reel (TR) || 754-APTBD3216SURKCGKC-01CT-ND - Cut Tape (CT) || 754-APTBD3216SURKCGKC-01DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 1206 (3216 Metric)
Specifications
- Mfr
- Kingbright
- Color
- Green, Red
- Series
- Heli-R
- Features
- -
- Lens Size
- 1.60mm Dia
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- Colorless
- Lens Style
- Round with Domed Top
- Part Status
- Active
- Height (Max)
- 2.00mm
- Configuration
- Independent
- Mounting Type
- Surface Mount
- Viewing Angle
Current - Test20mA Green, 20mA Red Package / Case1206 (3216 Metric) Size / Dimension3.20mm L x 1.60mm W Wavelength - Peak574nm Green, 645nm Red Base Product NumberAPTBD3216 Millicandela Rating250mcd Green, 600mcd Red Wavelength - Dominant570nm Green, 630nm Red Supplier Device Package1206 Voltage - Forward (Vf) (Typ)2.1V Green, 1.95V Red Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.04000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.50600 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.53810 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.10272 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.95966 |
| Tape & Reel (TR) | 2,000 | ¥1.83801 |
| Tape & Reel (TR) | 4,000 | ¥1.73478 |
| Tape & Reel (TR) | 6,000 | ¥1.68181 |
| Tape & Reel (TR) | 10,000 | ¥1.62200 |
| Tape & Reel (TR) | 14,000 | ¥1.58643 |
| Tape & Reel (TR) | 20,000 | ¥1.55173 |
| Tape & Reel (TR) | 50,000 | ¥1.47514 |
