Description

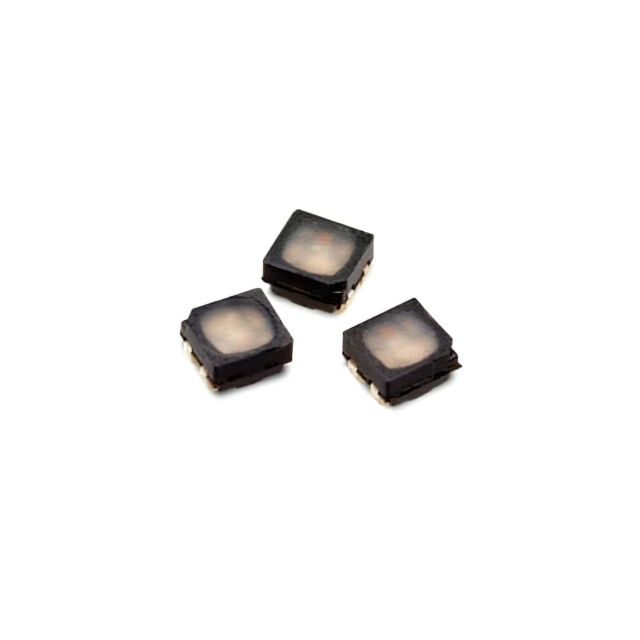

Red, Green, Blue (RGB) 620nm Red, 529nm Green, 466nm Blue LED Indication - Discrete 2V Red, 2.7V Green, 2.7V Blue 4-SMD, J-Lead
Specifications
- Mfr
- Broadcom Limited
- Color
- Red, Green, Blue (RGB)
- Series
- ASCB-JTC2
- Features
- -
- Lens Size
- 1.25mm x 1.23mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- -
- Lens Style
- Rectangle with Flat Top
- Part Status
- Active
- Height (Max)
- 1.20mm
- Configuration
- Common Anode
- Mounting Type
- Surface Mount
- Viewing Angle
Current - Test8mA Red, 5mA Green, 3mA Blue Package / Case4-SMD, J-Lead Size / Dimension1.50mm L x 1.60mm W Lens TransparencyDiffused Wavelength - Peak628nm Red, 521nm Green, 462nm Blue Base Product NumberASCB-JTC2 Millicandela Rating55mcd Red, 175mcd Green, 19mcd Blue Wavelength - Dominant620nm Red, 529nm Green, 466nm Blue Supplier Device Package4-PLCC Voltage - Forward (Vf) (Typ)2V Red, 2.7V Green, 2.7V Blue Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.21000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.59700 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.60260 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.15798 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.01184 |
| Cut Tape (CT) & Digi-Reel® | 2,000 | ¥1.88759 |
| Cut Tape (CT) & Digi-Reel® | 5,000 | ¥1.75178 |
| Tape & Reel (TR) | 15,000 | ¥1.62363 |
| Tape & Reel (TR) | 30,000 | ¥1.55855 |
| Tape & Reel (TR) | 45,000 | ¥1.52523 |
