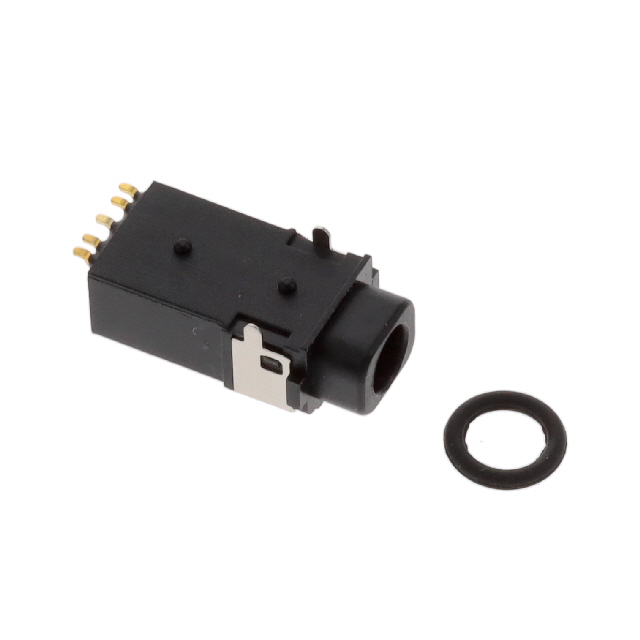

ASJ-181-1A-HDW-WP
AUDIO JACK, WATERPROOF
Manufacturer: Adam TechIC code: 2057-ASJ-181-1A-HDW-WPTR-ND - Tape & Reel (TR) || 2057-ASJ-181-1A-HDW-WPCT-ND - Cut Tape (CT) || 2057-ASJ-181-1A-HDW-WPDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Specifications
- Mfr
- Adam Tech
- Gender
- Female
- Series
- ASJ
- Features
- Board Guide, IP67
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (4 Conductor, TRRS)
- Body Material
- -
Mounting TypeSurface Mount, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy Housing MaterialThermoplastic Base Product NumberASJ-181 Operating Temperature-25°C ~ 85°C Contact Material - PlatingGold Number of Positions/Contacts4 Conductors, 5 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥23.98000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥20.37700 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥19.10360 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥18.19060 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥17.32070 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥16.23596 |
| Tape & Reel (TR) | 800 | ¥14.95680 |
| Tape & Reel (TR) | 1,600 | ¥14.24330 |
| Tape & Reel (TR) | 2,400 | ¥13.84200 |
| Tape & Reel (TR) | 4,000 | ¥13.35252 |
| Tape & Reel (TR) | 5,600 | ¥13.03965 |
