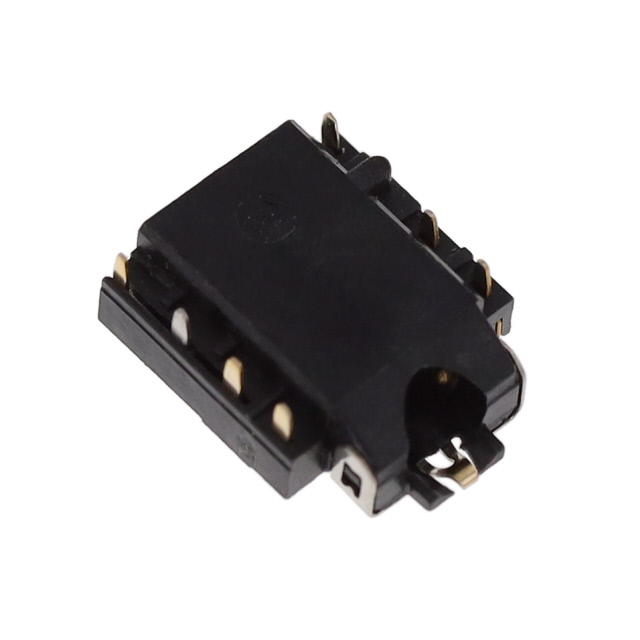

ASJ-198-Y-HT-T/R
AUDIO JACK
Manufacturer: Adam TechIC code: 2057-ASJ-198-Y-HT-T/RTR-ND - Tape & Reel (TR) || 2057-ASJ-198-Y-HT-T/RCT-ND - Cut Tape (CT) || 2057-ASJ-198-Y-HT-T/RDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Specifications
- Mfr
- Adam Tech
- Gender
- Female
- Series
- ASJ
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (4 Conductor, TRRS)
- Body Material
- -
Mounting TypeThrough Hole, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialPhosphor Bronze Housing MaterialThermoplastic Internal Switch(s)Single Switch Base Product NumberASJ-198 Mating Length/Depth0.551" (14.00mm) Current Rating (Amps)500 mA Operating Temperature-20°C ~ 70°C Contact Material - PlatingGold Number of Positions/Contacts5 Conductors, 6 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 9,600 | ¥7.52052 |
| Cut Tape (CT) | 1 | ¥15.05000 |
| Cut Tape (CT) | 10 | ¥12.78500 |
| Digi-Reel® | 1 | ¥15.05000 |
| Digi-Reel® | 10 | ¥12.26400 |
| Digi-Reel® | 25 | ¥11.30360 |
| Digi-Reel® | 50 | ¥10.63020 |
| Digi-Reel® | 100 | ¥9.99510 |
