Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

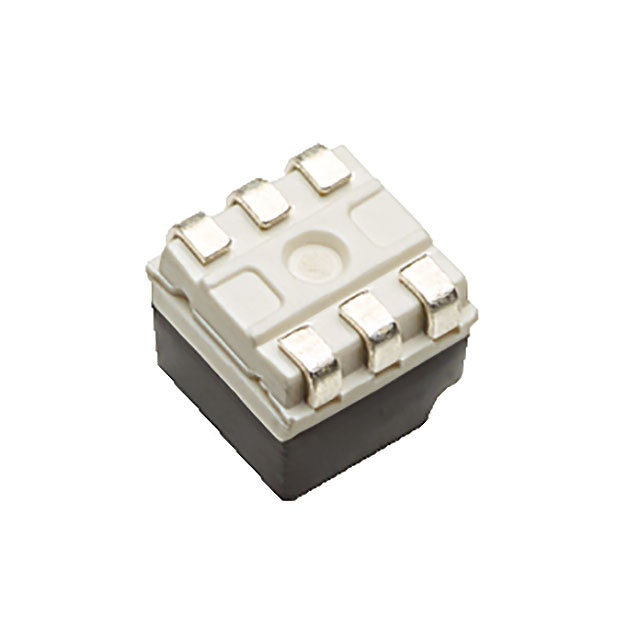

Red, Green, Blue (RGB) 620nm Red, 524nm Green, 471nm Blue LED Indication - Discrete 2V Red, 3.1V Green, 3.1V Blue 6-SMD, J-Lead
Specifications
- Mfr
- Broadcom Limited
- Color
- Red, Green, Blue (RGB)
- Series
- ASMB-UTF0
- Features
- -
- Lens Size
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- -
- Lens Style
- Oval with Flat Top
- Part Status
- Active
- Height (Max)
- 2.60mm
- Configuration
- Independent
- Mounting Type
- Surface Mount
- Viewing Angle
Current - Test20mA Red, 20mA Green, 20mA Blue Package / Case6-SMD, J-Lead Size / Dimension2.80mm L x 2.70mm W Lens TransparencyDiffused Wavelength - Peak628nm Red, 518nm Green, 467nm Blue Base Product NumberASMB-UTF0 Millicandela Rating650mcd Red, 1420mcd Green, 360mcd Blue Wavelength - Dominant620nm Red, 524nm Green, 471nm Blue Supplier Device Package6-PLCC Voltage - Forward (Vf) (Typ)2V Red, 3.1V Green, 3.1V Blue Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.38000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.04300 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.19150 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.80700 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.68046 |
| Tape & Reel (TR) | 3,000 | ¥1.51765 |
| Tape & Reel (TR) | 6,000 | ¥1.43469 |
| Tape & Reel (TR) | 9,000 | ¥1.39214 |
| Tape & Reel (TR) | 15,000 | ¥1.34411 |
| Tape & Reel (TR) | 21,000 | ¥1.31553 |
| Tape & Reel (TR) | 30,000 | ¥1.28767 |
