Description

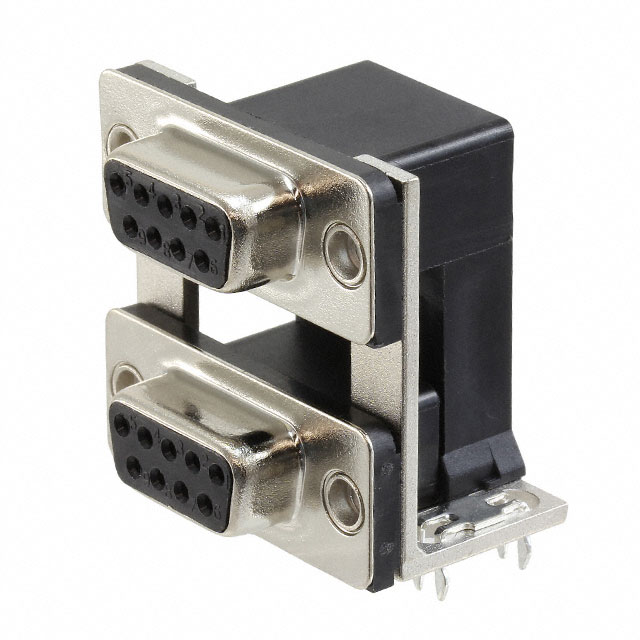

9, 9 Position D-Sub - Stacked Receptacle, Female Sockets Connector
Specifications
- Mfr
- Assmann WSW Components
- Color
- Black
- Series
- -
- Features
- Board Lock
- Packaging
- Tray
- Wire Gauge
- -
- Part Status
- Active
- Termination
- Solder
- Contact Form
- -
- Contact Type
- Signal
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Receptacle, Female Sockets
- Contact Finish
- Gold
Connector StyleD-Sub - Stacked Contact MaterialCopper Alloy Base Product NumberASUB-277 Dielectric MaterialPolybutylene Terephthalate (PBT) Operating Temperature-55°C ~ 105°C Shell Material, FinishSteel, Tin Plated Contact Finish ThicknessFlash Material Flammability RatingUL94 V-0 Shell Size, Connector Layout1 (DE, E); 1 (DE, E) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥44.58000 |
| Tray | 20 | ¥36.07800 |
| Tray | 40 | ¥34.35550 |
| Tray | 60 | ¥33.38450 |
| Tray | 100 | ¥32.20250 |
| Tray | 260 | ¥30.10308 |
| Tray | 500 | ¥28.74648 |
| Tray | 1,000 | ¥27.37549 |
| Tray | 2,500 | ¥25.66360 |
