Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

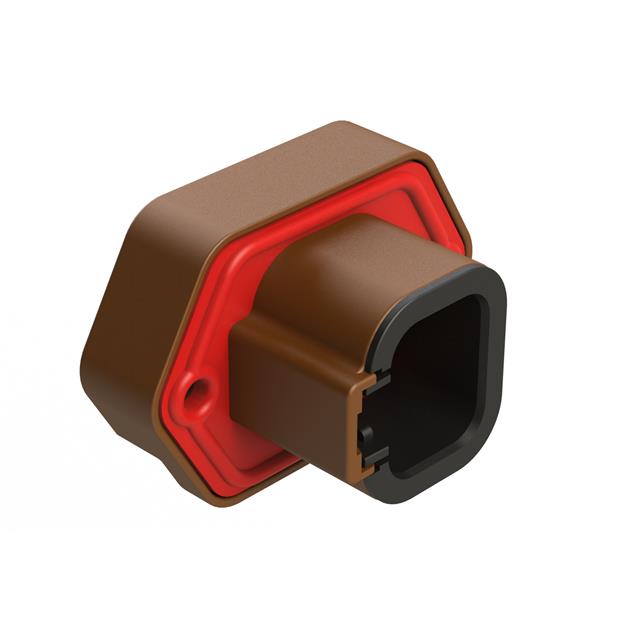

Connector Header Panel Mount, Through Hole 4 position 0.264" (6.71mm)
Specifications
- Mfr
- Amphenol Sine Systems Corp
- Style
- Board to Cable/Wire
- Series
- BoardLock™ ATP
- Features
- Board Lock, Mounting Flange, Potting Wall, Sealed
- Packaging
- Box
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Circular
- Mounting Type
- Panel Mount, Through Hole
- Connector Type
- Receptacle
Fastening TypeLatch Holder Pitch - Mating0.264" (6.71mm) Contact MaterialCopper Alloy Insulation Height1.339" (34.00mm) Ingress ProtectionIP68/IP69K - Dust Tight, Water Resistant, Waterproof Base Product NumberATP15-4PD Insulation MaterialThermoplastic Row Spacing - Mating0.402" (10.20mm) Contact Finish - PostGold Contact Length - Post0.181" (4.60mm) Operating Temperature-55°C ~ 125°C Overall Contact Length1.520" (38.60mm) Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 100 | ¥93.29050 |
