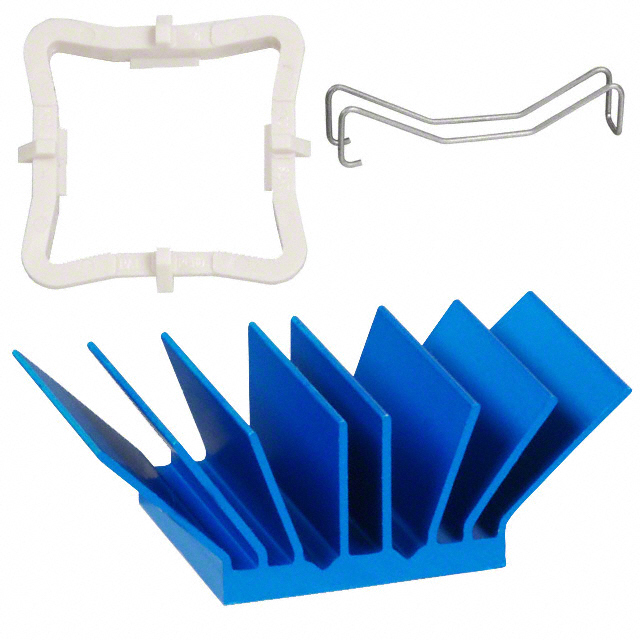

ATS-50210G-C1-R0
HEAT SINK 21MM X 21MM X 12.5MM
Manufacturer: Advanced Thermal Solutions Inc.IC code: ATS1018-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Heat Sink BGA Aluminum Top Mount
Specifications
- Mfr
- Advanced Thermal Solutions Inc.
- Type
- Top Mount
- Shape
- Square, Angled Fins
- Width
- 0.827" (21.00mm)
- Length
- 0.827" (21.00mm)
- Series
- maxiGRIP, maxiFLOW
- Diameter
- -
- Material
- Aluminum
- Packaging
- Bulk
- Fin Height
- 0.492" (12.50mm)
- Shelf Life
- -
- Part Status
- Active
- Package Cooled
- BGA
- Material Finish
- Blue Anodized
- Attachment Method
- Clip, Thermal Material
- Base Product Number
- ATS-502
- Thermal Resistance @ Natural
- -
- Power Dissipation @ Temperature Rise
- -
- Thermal Resistance @ Forced Air Flow
- 7.20°C/W @ 200 LFM
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Bulk | 1 | ¥123.80000 |
| Bulk | 10 | ¥109.57700 |
| Bulk | 25 | ¥104.37040 |
| Bulk | 50 | ¥100.59460 |
| Bulk | 100 | ¥96.95160 |
| Bulk | 300 | ¥91.43990 |
| Bulk | 500 | ¥88.98080 |
