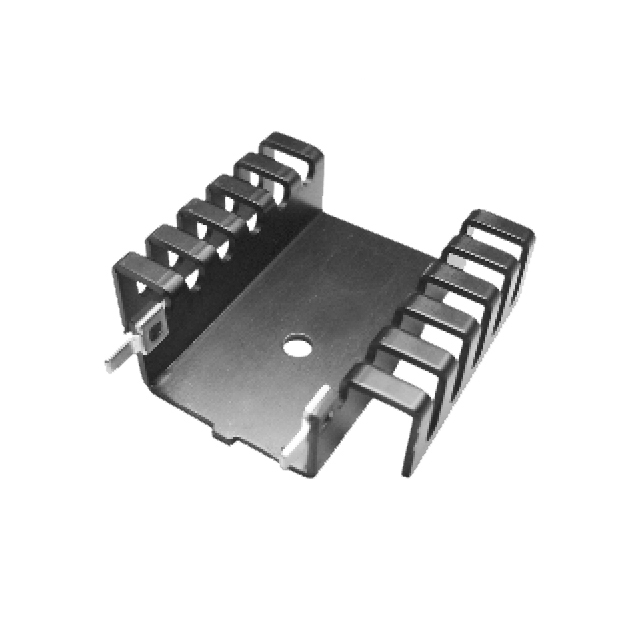

ATS-PCB1045
HEATSINK TO-220/TO-218/TO-247
Manufacturer: Advanced Thermal Solutions Inc.IC code: ATS2087-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Heat Sink TO-218, TO-220, TO-247 Aluminum Board Level, Vertical
Specifications
- Mfr
- Advanced Thermal Solutions Inc.
- Type
- Board Level, Vertical
- Shape
- Rectangular, Fins
- Width
- 1.700" (43.18mm)
- Length
- 1.640" (41.66mm)
- Series
- -
- Diameter
- -
- Material
- Aluminum
- Packaging
- Bulk
- Fin Height
- 0.500" (12.70mm)
- Part Status
- Obsolete
- Package Cooled
- TO-218, TO-220, TO-247
- Material Finish
- Black Anodized
- Attachment Method
- Bolt On and PC Pin
- Thermal Resistance @ Natural
- 8.60°C/W
- Power Dissipation @ Temperature Rise
- -
- Thermal Resistance @ Forced Air Flow
- 6.30°C/W @ 200 LFM
