Description

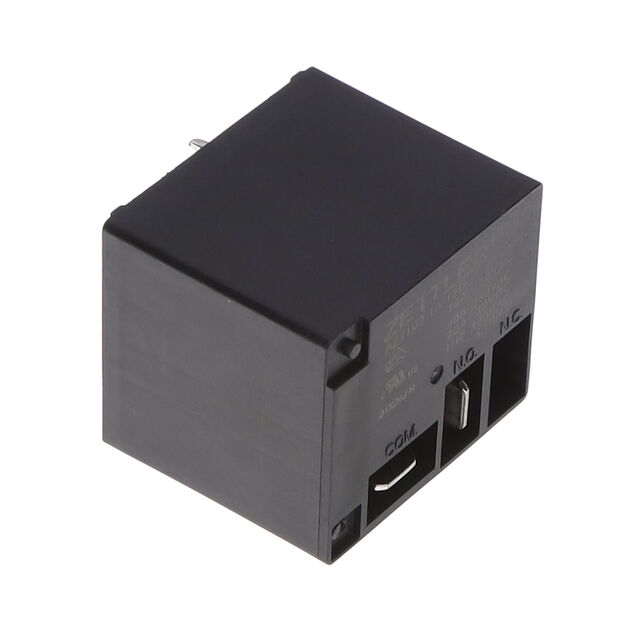

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Specifications
- Mfr
- American Zettler
- Grade
- -
- Series
- AZ2100
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Box
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- Sealed - Fully
- Coil Current
- 77.4 mA
- Coil Voltage
- 12VDC
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 15 ms
- Release Time
Mounting TypeThrough Hole Approval AgencycURus, VDE Contact MaterialSilver Cadmium Oxide (AgCdO) Switching Voltage300VAC, 30VDC - Max Termination StylePC Pin, Quick Connect - 0.250" (6.3mm) Base Product NumberAZ2100-1A Load - Max Switching12000VA, 1200W Must Operate Voltage9 VDC Must Release Voltage1.2 VDC Operating Temperature-55°C ~ 85°C Contact Rating (Current)40 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥20.22000 |
| Box | 10 | ¥18.01400 |
| Box | 40 | ¥16.80325 |
| Box | 80 | ¥16.22813 |
| Box | 120 | ¥15.90100 |
| Box | 280 | ¥15.23732 |
| Box | 520 | ¥14.76960 |
| Box | 1,000 | ¥14.29059 |
| Box | 5,000 | ¥13.17594 |
