Description

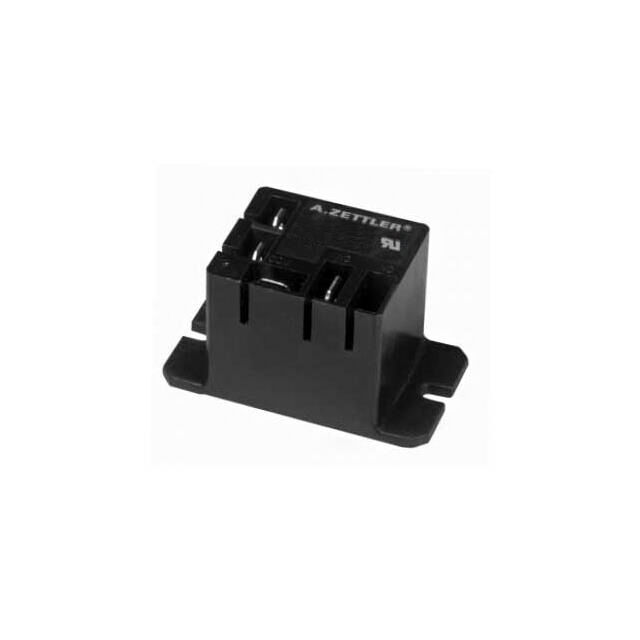

General Purpose Relay SPST-NO (1 Form A) 24VAC Coil Chassis Mount
Specifications
- Mfr
- American Zettler
- Grade
- -
- Series
- AZ2280
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Box
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- -
- Coil Current
- 240 mA
- Coil Voltage
- 24VAC
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 15 ms
- Release Time
Mounting TypeChassis Mount Approval AgencyCUR, UL, VDE Contact MaterialSilver Tin Oxide (AgSnO) Switching Voltage277VAC, 28VDC - Max Termination StyleQuick Connect - 0.187"/0.250" Load - Max Switching11080VA, 840W Must Operate Voltage20.4 VAC Must Release Voltage4.8 VAC Operating Temperature-55°C ~ 85°C Contact Rating (Current)40 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥29.11000 |
| Box | 10 | ¥25.91100 |
| Box | 40 | ¥24.16825 |
| Box | 80 | ¥23.33938 |
| Box | 120 | ¥22.86767 |
| Box | 280 | ¥21.91279 |
| Box | 520 | ¥21.23979 |
| Box | 1,000 | ¥20.55078 |
