Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

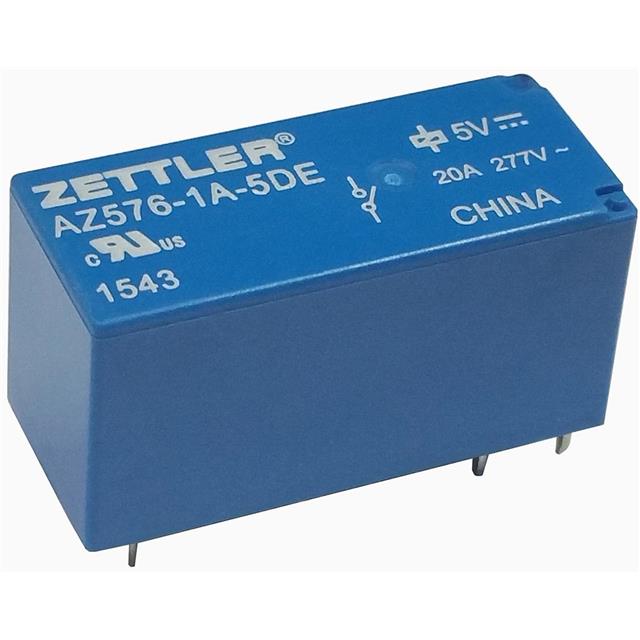

General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Specifications
- Mfr
- American Zettler
- Grade
- -
- Series
- AZ576
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Tube
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- Sealed - Fully
- Coil Current
- 80 mA
- Coil Voltage
- 5VDC
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 15 ms
- Release Time
Mounting TypeThrough Hole Approval AgencyCUR, TUV, UL Contact MaterialSilver Tin Oxide (AgSnO) Switching Voltage480VAC, 30VDC - Max Base Product NumberAZ576-1A Load - Max Switching5540VA, 510W Must Operate Voltage3.75 VDC Must Release Voltage0.5 VDC Operating Temperature-40°C ~ 105°C Contact Rating (Current)20 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥20.22000 |
| Tube | 20 | ¥17.39850 |
| Tube | 40 | ¥16.80325 |
| Tube | 60 | ¥16.46550 |
| Tube | 100 | ¥16.04800 |
| Tube | 260 | ¥15.29431 |
| Tube | 500 | ¥14.79866 |
| Tube | 1,000 | ¥14.29059 |
| Tube | 5,000 | ¥13.17594 |
