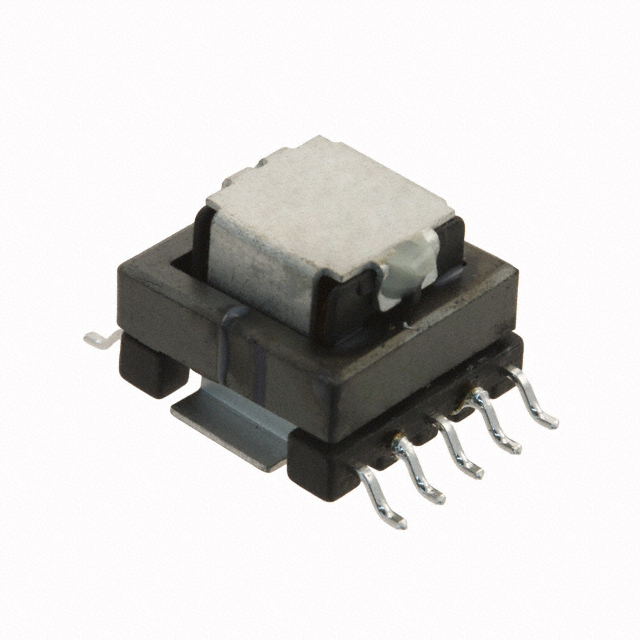

B82801C2245A200
CURR SENSE XFMR 1:200 SMD
Manufacturer: EPCOS - TDK ElectronicsIC code: 495-4444-2-ND - Tape & Reel (TR) || 495-4444-1-ND - Cut Tape (CT) || 495-4444-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
1:200 Current Sense Transformer 50kHz ~ 500kHz 0.28mOhm Primary, 2.9Ohm Secondary 22.4 mH Surface Mount
Specifications
- Type
- Invasive
- Series
- B82801C
- Weight
- 0.011 lb (4.99 g)
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 22.4 mH
- Part Status
- Active
- Manufacturer
- EPCOS - TDK Electronics
- Current Ratio
- -
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Frequency Range
- 50kHz ~ 500kHz
- Size / Dimension
