Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

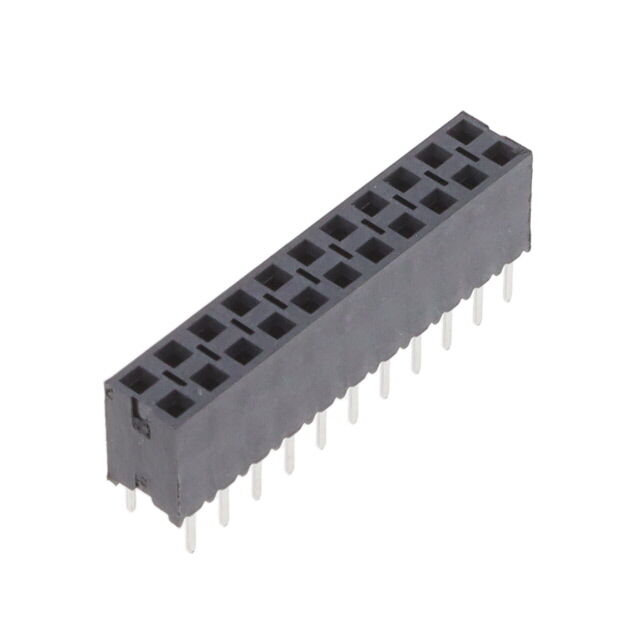

22 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Board
- Series
- Tiger Claw™ BCS
- Features
- -
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle, Bottom or Top Entry
- Fastening Type
- Push-Pull
Pitch - Mating0.100" (2.54mm) Contact MaterialPhosphor Bronze Insulation Height0.290" (7.37mm) Base Product NumberBCS-111 Insulation MaterialLiquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating0.100" (2.54mm) Contact Length - Post0.120" (3.05mm) Current Rating (Amps)4.6A per Contact Operating Temperature-55°C ~ 125°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating10.0µin (0.25µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥29.94000 |
| Tube | 50 | ¥26.26220 |
| Tube | 100 | ¥23.60340 |
| Tube | 500 | ¥21.89992 |
| Tube | 1,000 | ¥19.43448 |
