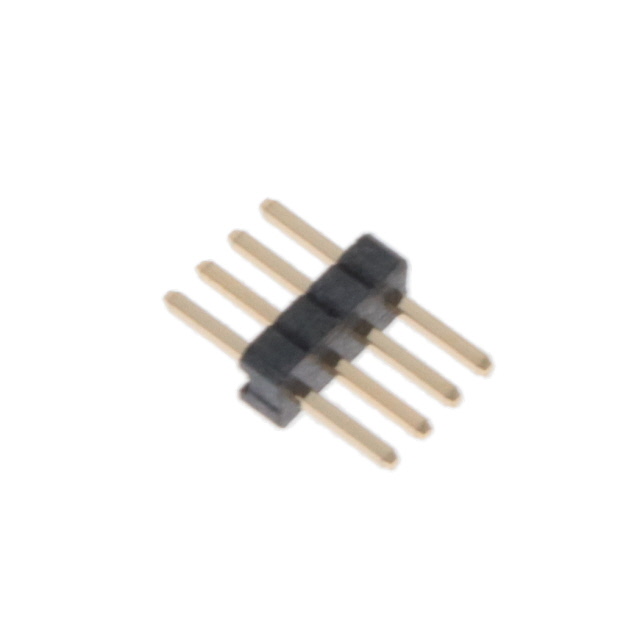

BD020-04-A-J-0350-0300-L-G
04W, 1.27MM PITCH PIN HDR, SIL,
Manufacturer: GCTIC code: 2073-BD020-04-A-J-0350-0300-L-G-ND Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole 4 position 0.050" (1.27mm)
Specifications
- Mfr
- GCT
- Style
- Board to Board
- Series
- BD020
- Features
- -
- Packaging
- Box
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Header
Pitch - Mating0.050" (1.27mm) Contact MaterialCopper Alloy Insulation Height0.055" (1.40mm) Insulation MaterialLiquid Crystal Polymer (LCP) Contact Finish - PostGold Contact Length - Post0.118" (3.00mm) Current Rating (Amps)1A per Contact Operating Temperature-40°C ~ 105°C Overall Contact Length0.311" (7.90mm) Contact Finish - MatingGold Contact Length - Mating0.138" (3.50mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - PostFlash Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥4.38000 |
| Box | 10 | ¥3.74600 |
| Box | 100 | ¥3.18480 |
| Box | 500 | ¥2.84240 |
| Box | 1,000 | ¥2.70660 |
| Box | 5,000 | ¥2.41593 |
| Box | 10,000 | ¥2.30068 |
