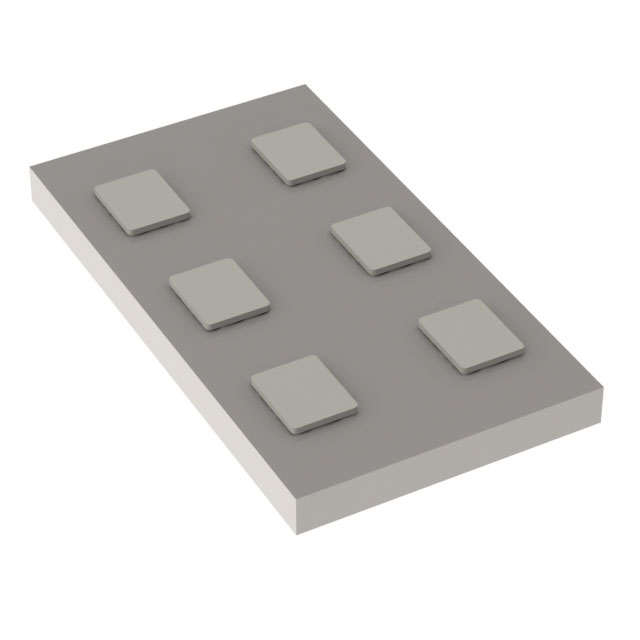

BD2326L50200AHF2
BALUN 2.3GHZ-2.6GHZ 50/200 0603
Manufacturer: TTM Technologies, Inc.IC code: 1173-BD2326L50200AHF2TR-ND - Tape & Reel (TR) || 1173-BD2326L50200AHF2CT-ND - Cut Tape (CT) || 1173-BD2326L50200AHF2DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Balun 2.3GHz ~ 2.6GHz 50 / 200Ohm 0603 (1608 Metric), 6 PC Pad
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- TTM Technologies, Inc.
- Mounting Type
- Surface Mount
- Package / Case
- 0603 (1608 Metric), 6 PC Pad
- Frequency Range
- 2.3GHz ~ 2.6GHz
- Phase Difference
- 3°
- Return Loss (Min)
- 12dB
- Insertion Loss (Max)
- 1.1dB
- Impedance - Unbalanced/Balanced
- 50 / 200Ohm
