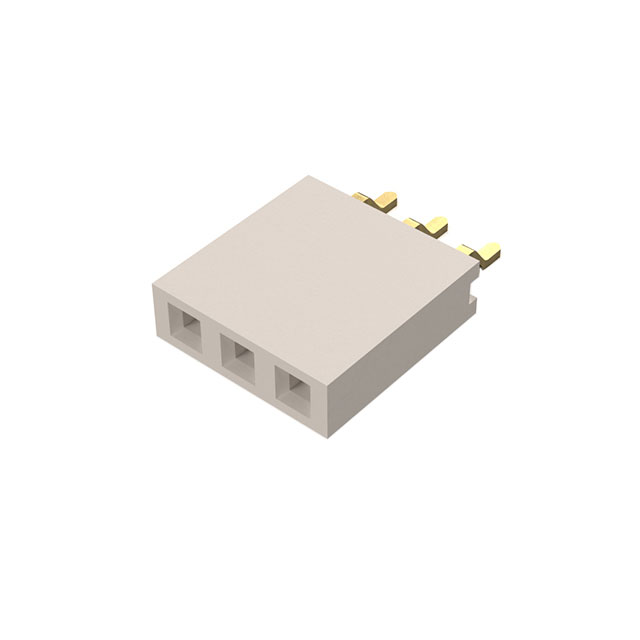

BG300-03-A-L-A
3W, 2.54MM PTH SOCKET, SIL, SMT,
Manufacturer: GCTIC code: 2073-BG300-03-A-L-ATR-ND - Tape & Reel (TR) || 2073-BG300-03-A-L-ACT-ND - Cut Tape (CT) || 2073-BG300-03-A-L-ADKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
Specifications
- Mfr
- GCT
- Style
- Board to Board
- Series
- BG300
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose
- Contact Type
- Forked
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
Pitch - Mating0.100" (2.54mm) Contact MaterialCopper Alloy Insulation Height0.098" (2.50mm) Insulation MaterialLiquid Crystal Polymer (LCP), Glass Filled Contact Finish - PostGold Current Rating (Amps)3A per Contact Operating Temperature-40°C ~ 105°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - PostFlash Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.22000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.58900 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.04670 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.71900 |
| Tape & Reel (TR) | 1,400 | ¥2.52831 |
| Tape & Reel (TR) | 2,800 | ¥2.40760 |
| Tape & Reel (TR) | 4,200 | ¥2.33970 |
| Tape & Reel (TR) | 7,000 | ¥2.25689 |
| Tape & Reel (TR) | 9,800 | ¥2.20396 |
| Tape & Reel (TR) | 14,000 | ¥2.14922 |
| Tape & Reel (TR) | 35,000 | ¥2.01478 |
