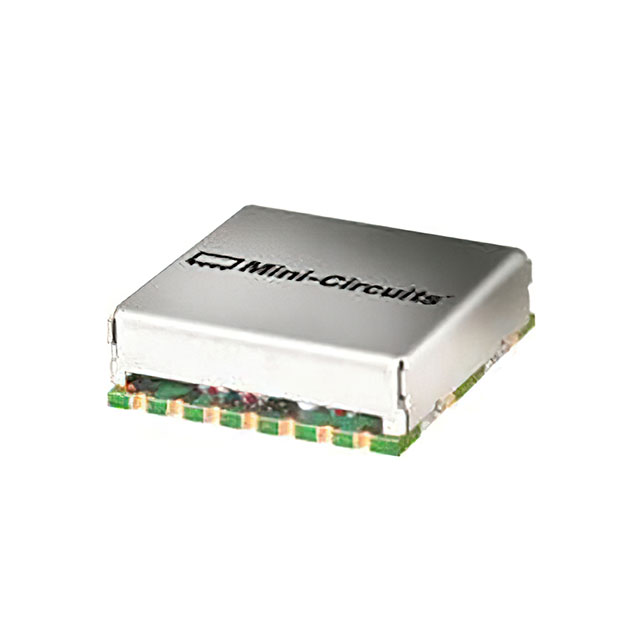

BPF-C670+
RF FILTER BAND PASS 670MHZ 14SMD
Manufacturer: Mini-CircuitsIC code: 3157-BPF-C670+TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
670MHz Center Frequency Band Pass RF Filter (Radio Frequency) 400MHz Bandwidth 2.8dB 14-SMD Module
Specifications
- Ripple
- -
- Series
- BPF
- Bandwidth
- 400MHz
- Frequency
- 670MHz Center
- Packaging
- Tape & Reel (TR)
- Filter Type
- Band Pass
- Part Status
- Active
- Height (Max)
- 0.250" (6.35mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 2.8dB
- Package / Case
- 14-SMD Module
- Size / Dimension
- 0.870" L x 0.800" W (22.10mm x 20.32mm)
