Description

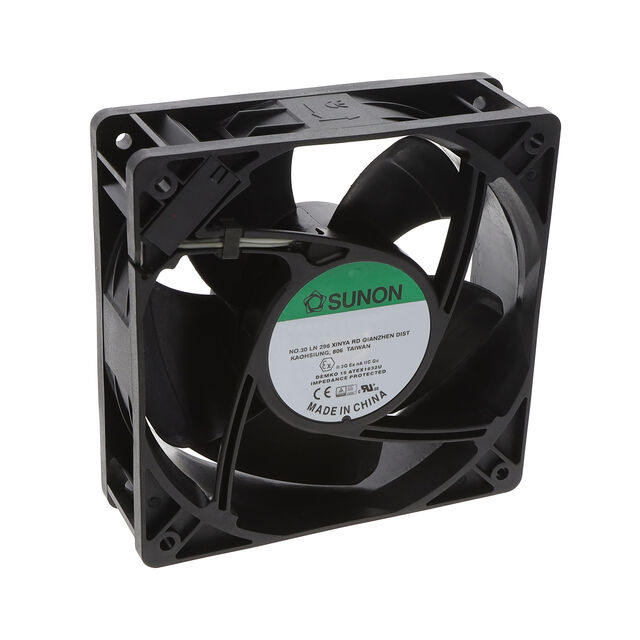

Fan Tubeaxial 100 ~ 240VAC Square - 120mm L x 120mm H Ball 109.0 CFM (3.05m³/min) 2 Terminals
Specifications
- RPM
- 3500 RPM
- Noise
- 44.9dB(A)
- Width
- 38.00mm
- Series
- CF
- Weight
- 0.699 lb (317.06 g)
- Air Flow
- 109.0 CFM (3.05m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Dual Voltage, Electronic Commutation (EC)
- Packaging
- Bulk
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Manufacturer
- Sunon Fans
Approval AgencyATEX, CE, CUR, TUV, UL Static Pressure0.370 in H2O (92.2 Pa) Voltage - Rated100 ~ 240VAC Material - BladePolybutylene Terephthalate (PBT) Material - FramePolybutylene Terephthalate (PBT) Size / DimensionSquare - 120mm L x 120mm H Ingress ProtectionIP55 - Dust Protected, Water Resistant Base Product NumberCF4113HBT Current Rating (Amps)0.081A Operating Temperature-13 ~ 158°F (-25 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥661.70000 |
| Bulk | 10 | ¥536.74500 |
