CI1506M1VR0-NH

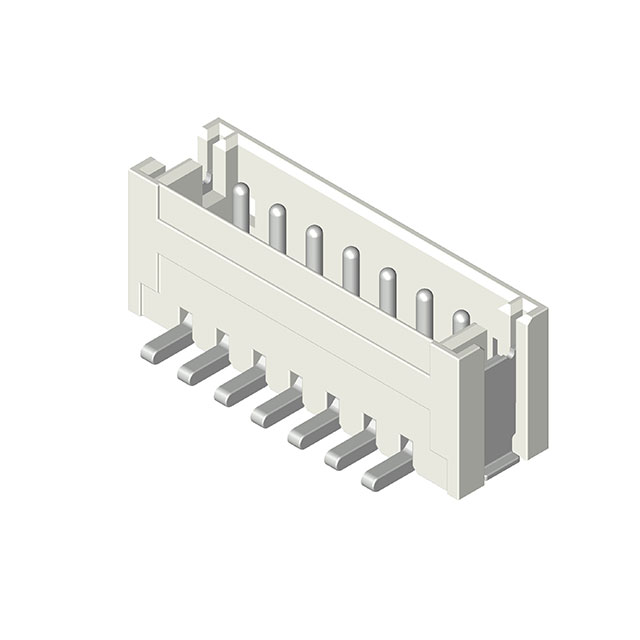

6 POS 1.50MM(.059) WIRE TO BOARD
Manufacturer: Cvilux USAIC code: 2987-CI1506M1VR0-NHTR-ND - Tape & Reel (TR) || 2987-CI1506M1VR0-NHCT-ND - Cut Tape (CT) Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 6 position 0.059" (1.50mm)
Specifications
- Mfr
- Cvilux USA
- Style
- Board to Cable/Wire
- Series
- CI15
- Features
- Pick and Place, Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT)
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Fastening TypeDetent Lock Pitch - Mating0.059" (1.50mm) Insulation Height0.199" (5.05mm) Base Product NumberCI1506M1 Insulation MaterialPlastic, Halogen Free Current Rating (Amps)1A (AC/DC) Operating Temperature-25°C ~ 85°C Contact Finish - MatingTin Contact Length - Mating0.093" (2.36mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post120.0µin (3.05µm) Contact Finish Thickness - Mating120.0µin (3.05µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) | 1 | ¥3.06000 |
| Cut Tape (CT) | 10 | ¥2.60500 |
| Cut Tape (CT) | 100 | ¥2.21390 |
| Tape & Reel (TR) | 900 | ¥1.89567 |
| Tape & Reel (TR) | 1,800 | ¥1.80511 |
| Tape & Reel (TR) | 2,700 | ¥1.75416 |
| Tape & Reel (TR) | 4,500 | ¥1.69204 |
| Tape & Reel (TR) | 6,300 | ¥1.65234 |
| Tape & Reel (TR) | 9,000 | ¥1.61129 |
| Tape & Reel (TR) | 22,500 | ¥1.51046 |
| Tape & Reel (TR) | 45,000 | ¥1.43843 |
