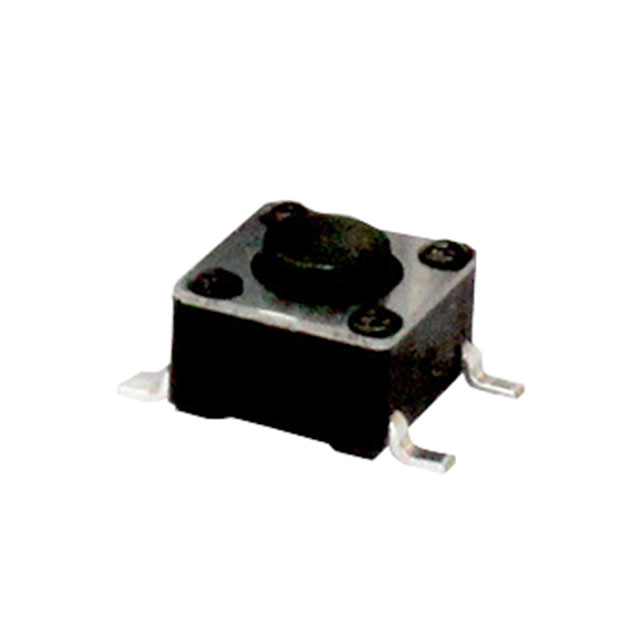

CS11024.3F260
SWITCH TACTILE SPST-NO 0.05A 50V
Manufacturer: CIT Relay and SwitchIC code: 2449-CS11024.3F260TR-ND - Tape & Reel (TR) || 2449-CS11024.3F260CT-ND - Cut Tape (CT) || 2449-CS11024.3F260DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- CIT Relay and Switch
- Series
- CS1102
- Circuit
- SPST-NO
- Outline
- 6.00mm x 6.00mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- -
- Operating Force
- 260gf
Actuator MaterialPolyamide (PA66), Nylon 6/6 Termination StyleGull Wing Base Product NumberCS11024 Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 50VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical4.30mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥2.73000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.38200 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥2.22280 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.99220 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥1.84588 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.74200 |
| Tape & Reel (TR) | 1,000 | ¥1.64482 |
| Tape & Reel (TR) | 2,000 | ¥1.55526 |
| Tape & Reel (TR) | 3,000 | ¥1.50657 |
| Tape & Reel (TR) | 5,000 | ¥1.44915 |
| Tape & Reel (TR) | 7,000 | ¥1.41374 |
| Tape & Reel (TR) | 10,000 | ¥1.37827 |
| Tape & Reel (TR) | 25,000 | ¥1.29658 |
| Tape & Reel (TR) | 50,000 | ¥1.24333 |
