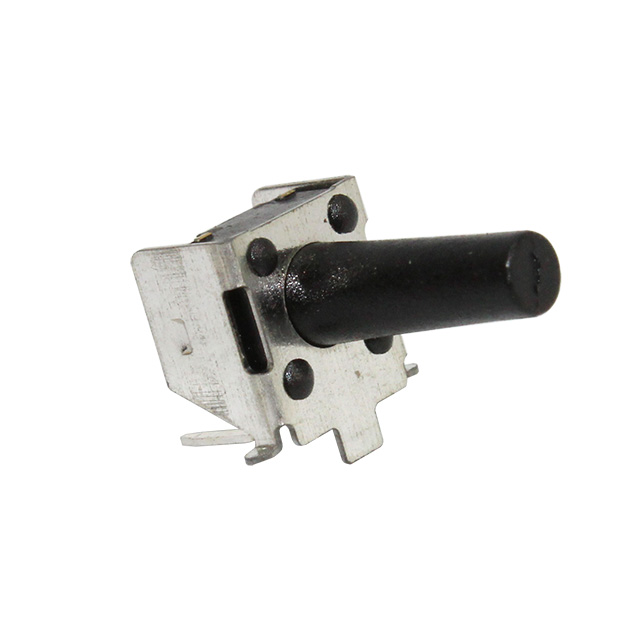

CS1102V11.85F100
SWITCH TACTILE SPST-NO 0.05A 50V
Manufacturer: CIT Relay and SwitchIC code: 2449-CS1102V11.85F100TR-ND - Tape & Reel (TR) || 2449-CS1102V11.85F100CT-ND - Cut Tape (CT) || 2449-CS1102V11.85F100DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Specifications
- Mfr
- CIT Relay and Switch
- Series
- CS1102V
- Circuit
- SPST-NO
- Outline
- 7.10mm x 6.30mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount, Right Angle
- Switch Travel
- 0.25mm
- Mechanical Life
- -
- Operating Force
- 100gf
Actuator MaterialPolyamide (PA46), Nylon 4/6 Termination StyleGull Wing Base Product NumberCS1102V Actuator OrientationSide Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 50VDC Illumination Type, Color- Actuator Length, Right Angle11.85mm Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.71000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥4.02700 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥3.75120 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.35100 |
| Tape & Reel (TR) | 450 | ¥3.08342 |
| Tape & Reel (TR) | 900 | ¥2.95257 |
| Tape & Reel (TR) | 1,350 | ¥2.87826 |
| Tape & Reel (TR) | 2,250 | ¥2.78706 |
| Tape & Reel (TR) | 3,150 | ¥2.72836 |
| Tape & Reel (TR) | 4,500 | ¥2.66742 |
| Tape & Reel (TR) | 11,250 | ¥2.51652 |
| Tape & Reel (TR) | 22,500 | ¥2.40771 |
