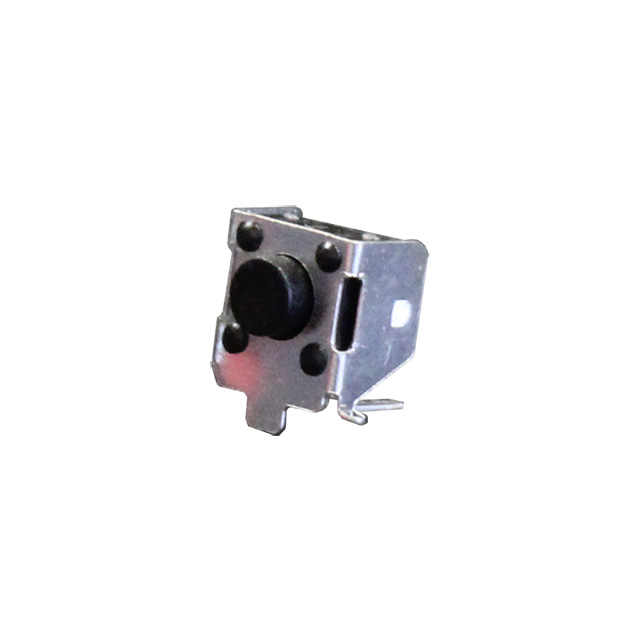

CS1102V3.85F260
SWITCH TACTILE SPST-NO 0.05A 50V
Manufacturer: CIT Relay and SwitchIC code: 2449-CS1102V3.85F260TR-ND - Tape & Reel (TR) || 2449-CS1102V3.85F260CT-ND - Cut Tape (CT) || 2449-CS1102V3.85F260DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- CIT Relay and Switch
- Series
- CS1102
- Circuit
- SPST-NO
- Outline
- 6.00mm x 6.00mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Plunger for Cap
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- -
- Operating Force
- 260gf
Actuator MaterialPolyamide (PA46), Nylon 4/6 Termination StyleGull Wing Base Product NumberCS1102V Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 50VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical3.85mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.23000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.77900 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥2.59680 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.32470 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥2.15416 |
| Tape & Reel (TR) | 600 | ¥2.06433 |
| Tape & Reel (TR) | 1,200 | ¥1.97667 |
| Tape & Reel (TR) | 1,800 | ¥1.92691 |
| Tape & Reel (TR) | 3,000 | ¥1.86579 |
| Tape & Reel (TR) | 4,200 | ¥1.82649 |
| Tape & Reel (TR) | 6,000 | ¥1.78567 |
| Tape & Reel (TR) | 15,000 | ¥1.68460 |
| Tape & Reel (TR) | 30,000 | ¥1.61176 |
