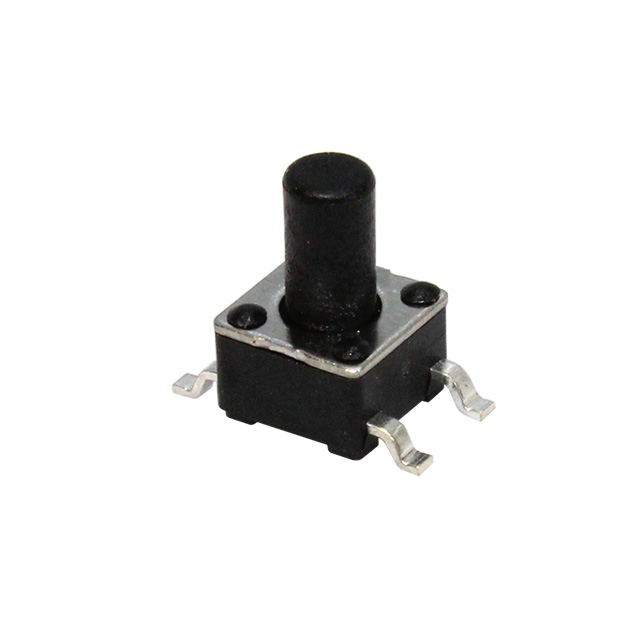

CS11047.0F260
SWITCH TACTILE SPST-NO 0.05A 50V
Manufacturer: CIT Relay and SwitchIC code: 2449-CS11047.0F260TR-ND - Tape & Reel (TR) || 2449-CS11047.0F260CT-ND - Cut Tape (CT) || 2449-CS11047.0F260DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- CIT Relay and Switch
- Series
- CS1104
- Circuit
- SPST-NO
- Outline
- 7.50mm x 4.50mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- -
- Operating Force
- 260gf
Actuator MaterialPolyamide (PA46), Nylon 4/6 Termination StyleGull Wing Base Product NumberCS11047 Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 50VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical7.00mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥2.32000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.00100 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥1.87240 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.67720 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥1.55444 |
| Tape & Reel (TR) | 750 | ¥1.44581 |
| Tape & Reel (TR) | 1,500 | ¥1.38439 |
| Tape & Reel (TR) | 2,250 | ¥1.34952 |
| Tape & Reel (TR) | 3,750 | ¥1.30670 |
| Tape & Reel (TR) | 5,250 | ¥1.27917 |
| Tape & Reel (TR) | 7,500 | ¥1.25055 |
| Tape & Reel (TR) | 18,750 | ¥1.17977 |
| Tape & Reel (TR) | 37,500 | ¥1.12874 |
| Tape & Reel (TR) | 75,000 | ¥1.07983 |
