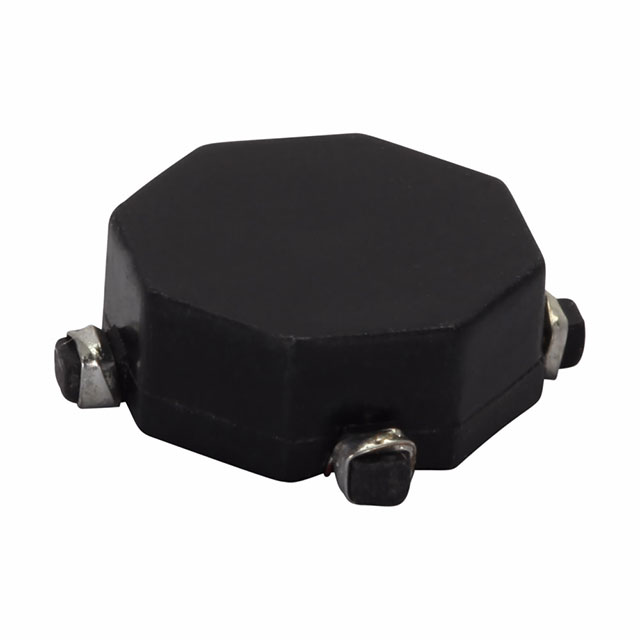

CTX20-1P-R
INDUCT ARRAY 2 COIL 20.46UH SMD
Manufacturer: Eaton - Electronics DivisionIC code: 283-CTX20-1P-RTR-ND - Tape & Reel (TR) || 283-CTX20-1P-RCT-ND - Cut Tape (CT) || 283-CTX20-1P-RDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Unshielded 2 Coil Inductor Array 81.83 µH Inductance - Connected in Series 20.46 µH Inductance - Connected in Parallel 158mOhm Max DC Resistance (DCR) - Parallel 1 A Nonstandard
Specifications
- Height
- 0.165" (4.19mm)
- Series
- Econo-Pac™
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Tolerance
- ±20%
- Part Status
- Active
- Manufacturer
- Eaton - Electronics Division
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.450" L x 0.450" W (11.43mm x 11.43mm)
