Description

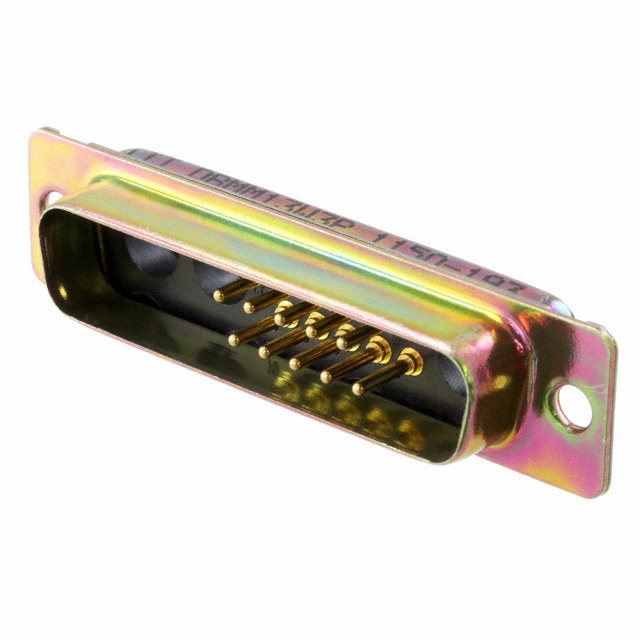

13 (10 + 3 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector
Specifications
- Mfr
- ITT Cannon, LLC
- Color
- Black
- Series
- 24308-Style, Combo D®, D*MM
- Features
- Shielded
- Packaging
- Bulk
- Wire Gauge
- 8-26 AWG
- Part Status
- Active
- Termination
- Solder Cup
- Contact Form
- Machined
- Contact Type
- Signal and Coax or Power (Not Included)
- Mounting Type
- Panel Mount
- Connector Type
- Plug, Male Pins
- Contact Finish
- Gold
Flange FeatureHousing/Shell (Unthreaded) Connector StyleD-Sub, Combo Contact MaterialCopper Alloy Dielectric MaterialPolycyclohexylenedimethylene Terephthalate (PCT) Number of Positions13 (10 + 3 Coax or Power) Current Rating (Amps)7.5A Operating Temperature-55°C ~ 150°C Shell Material, FinishSteel, Yellow Chromate Plated Zinc Contact Finish Thickness50.0µin (1.27µm) Material Flammability RatingUL94 V-0 Shell Size, Connector Layout3 (DB, B) - 13C3, 13W3 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥211.46000 |
| Bulk | 10 | ¥179.69000 |
| Bulk | 25 | ¥168.43640 |
| Bulk | 56 | ¥159.12339 |
| Bulk | 112 | ¥151.53429 |
| Bulk | 280 | ¥142.05775 |
| Bulk | 504 | ¥136.29437 |
