Description

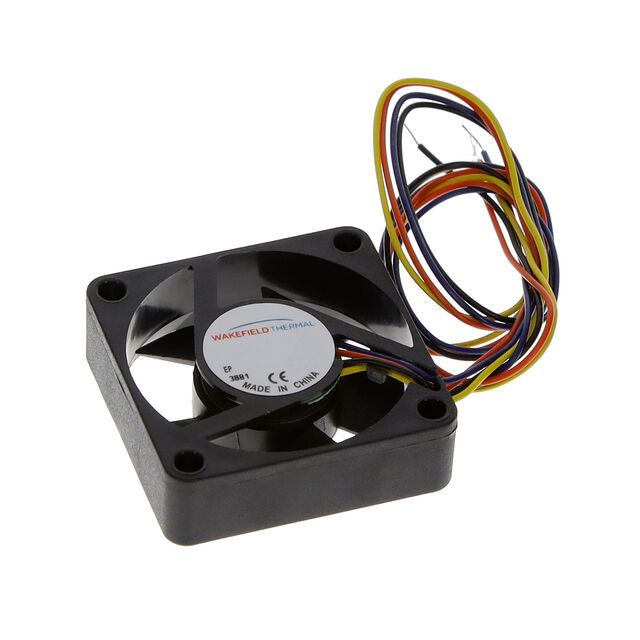

Fan Tubeaxial 12VDC Square - 35mm L x 35mm H Ball 6.3 CFM (0.176m³/min) 4 Wire Leads
Specifications
- Mfr
- Wakefield-Vette
- RPM
- 9000 RPM
- Noise
- 28.0dB(A)
- Width
- 10.00mm
- Series
- -
- Weight
- 0.025 lb (11.34 g)
- Air Flow
- 6.3 CFM (0.176m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Packaging
- Box
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
Approval AgencyCE, cURus, TUV Static Pressure0.220 in H2O (54.8 Pa) Lifetime @ Temp.70000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT), Glass Filled Material - FramePolybutylene Terephthalate (PBT), Glass Filled Size / DimensionSquare - 35mm L x 35mm H Base Product NumberDC0351012 Current Rating (Amps)0.070A Operating Temperature14 ~ 158°F (-10 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥132.98000 |
| Box | 10 | ¥117.69000 |
| Box | 25 | ¥112.10400 |
| Box | 50 | ¥108.04740 |
| Box | 100 | ¥104.13420 |
| Box | 250 | ¥99.17336 |
| Box | 500 | ¥95.57344 |
