Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

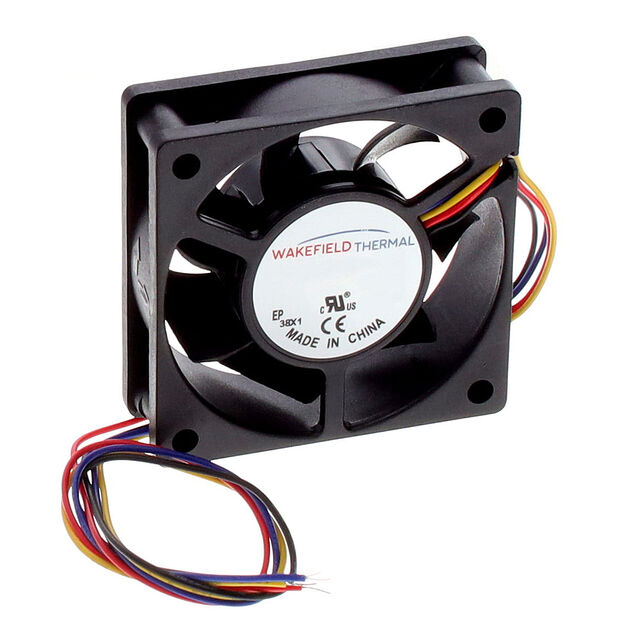

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 19.6 CFM (0.549m³/min) 4 Wire Leads
Specifications
- Mfr
- Wakefield-Vette
- RPM
- 4800 RPM
- Noise
- 33.0dB(A)
- Width
- 20.00mm
- Series
- -
- Weight
- 0.111 lb (50.35 g)
- Air Flow
- 19.6 CFM (0.549m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Packaging
- Box
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
Approval AgencyCE, cURus, TUV Static Pressure0.270 in H2O (67.3 Pa) Lifetime @ Temp.70000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT), Glass Filled Material - FramePolybutylene Terephthalate (PBT), Glass Filled Size / DimensionSquare - 60mm L x 60mm H Base Product NumberDC0602012 Current Rating (Amps)0.170A Operating Temperature14 ~ 158°F (-10 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥116.89000 |
| Box | 10 | ¥103.48200 |
| Box | 25 | ¥98.56920 |
| Box | 50 | ¥95.00440 |
| Box | 100 | ¥91.56500 |
| Box | 250 | ¥87.20368 |
| Box | 500 | ¥84.03838 |
