Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

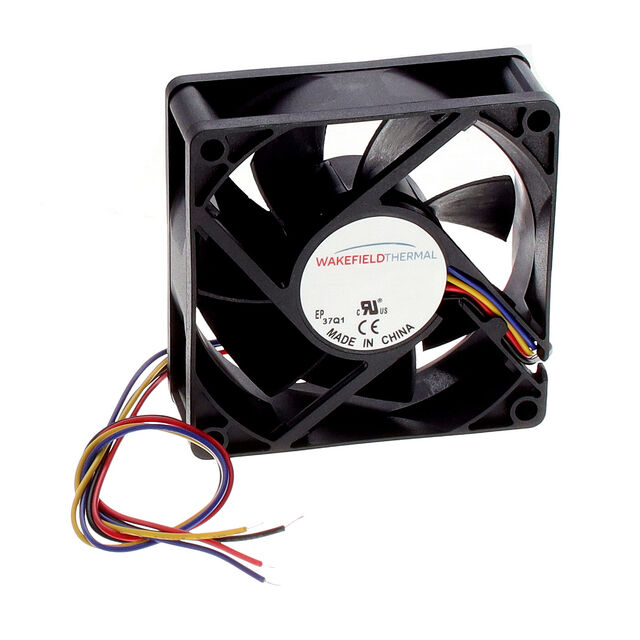

Fan Tubeaxial 12VDC Square - 70mm L x 70mm H Ball 54.8 CFM (1.53m³/min) 4 Wire Leads
Specifications
- Mfr
- Wakefield-Vette
- RPM
- 5500 RPM
- Noise
- 45.0dB(A)
- Width
- 25.00mm
- Series
- -
- Weight
- 0.111 lb (50.35 g)
- Air Flow
- 54.8 CFM (1.53m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Packaging
- Box
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
Approval AgencyCE, cURus, TUV Static Pressure0.500 in H2O (124.5 Pa) Lifetime @ Temp.70000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT), Glass Filled Material - FramePolybutylene Terephthalate (PBT), Glass Filled Size / DimensionSquare - 70mm L x 70mm H Base Product NumberDC0702512 Current Rating (Amps)0.160A Operating Temperature14 ~ 158°F (-10 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥117.24000 |
| Box | 10 | ¥103.75600 |
| Box | 25 | ¥98.83120 |
| Box | 50 | ¥95.25540 |
| Box | 100 | ¥91.80730 |
| Box | 250 | ¥87.43460 |
| Box | 500 | ¥84.26118 |
