Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

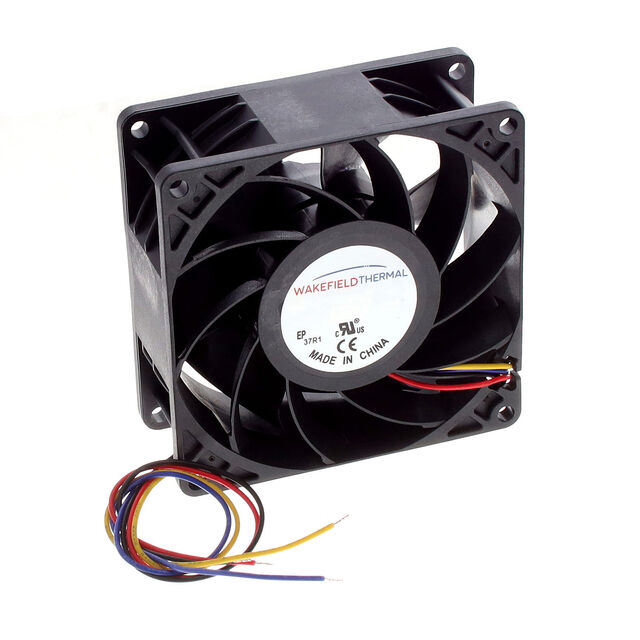

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 166.4 CFM (4.66m³/min) 4 Wire Leads
Specifications
- Mfr
- Wakefield-Vette
- RPM
- 8000 RPM
- Noise
- 72.0dB(A)
- Width
- 38.00mm
- Series
- -
- Weight
- 0.441 lb (200.00 g)
- Air Flow
- 166.4 CFM (4.66m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Packaging
- Box
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
Approval AgencyCE, cURus, TUV Static Pressure1.910 in H2O (475.7 Pa) Lifetime @ Temp.70000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT), Glass Filled Material - FramePolybutylene Terephthalate (PBT), Glass Filled Size / DimensionSquare - 92mm L x 92mm H Base Product NumberDC0923812 Current Rating (Amps)2.95A Operating Temperature14 ~ 158°F (-10 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥234.04000 |
| Box | 10 | ¥207.07800 |
| Box | 25 | ¥197.23760 |
| Box | 50 | ¥190.09540 |
| Box | 100 | ¥183.20520 |
| Box | 250 | ¥174.46780 |
| Box | 500 | ¥168.12610 |
