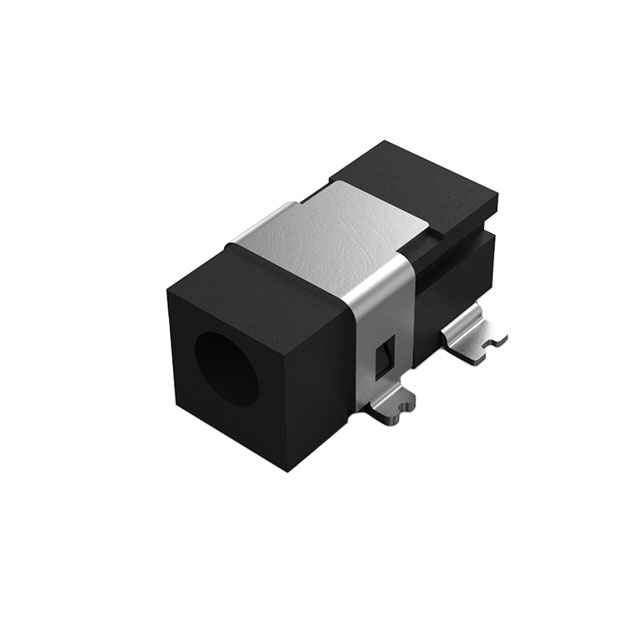

DCJ065-05-A-K1-A
DC POWER JACK, SMT, HORIZONTAL,
Manufacturer: GCTIC code: 2073-DCJ065-05-A-K1-ATR-ND - Tape & Reel (TR) || 2073-DCJ065-05-A-K1-ACT-ND - Cut Tape (CT) || 2073-DCJ065-05-A-K1-ADKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") Surface Mount, Right Angle
Specifications
- Gender
- Male
- Series
- DCJ065-05
- Features
- Board Guide, Solder Retention
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- GCT
- Body Material
- -
- Mounting Type
- Surface Mount, Right Angle
Actual Diameter0.026" (0.65mm ID), 0.110" (2.80mm OD) Contact MaterialBrass, Stainless Steel Housing MaterialPolyamide (PA9T), Nylon 9T Internal Switch(s)Single Switch, Normally Closed Base Product NumberDCJ065 Current Rating (Amps)2.5 A Operating Temperature-20°C ~ 70°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter0.70mm ID (0.028"), 2.35mm OD (0.093") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.62000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥4.79700 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥4.49880 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥4.28220 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥4.07790 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥3.82204 |
| Tape & Reel (TR) | 800 | ¥3.52074 |
| Tape & Reel (TR) | 1,600 | ¥3.35266 |
| Tape & Reel (TR) | 2,400 | ¥3.25807 |
| Tape & Reel (TR) | 4,000 | ¥3.14274 |
| Tape & Reel (TR) | 5,600 | ¥3.06904 |
| Tape & Reel (TR) | 8,000 | ¥2.99280 |
| Tape & Reel (TR) | 20,000 | ¥2.80559 |
