Description

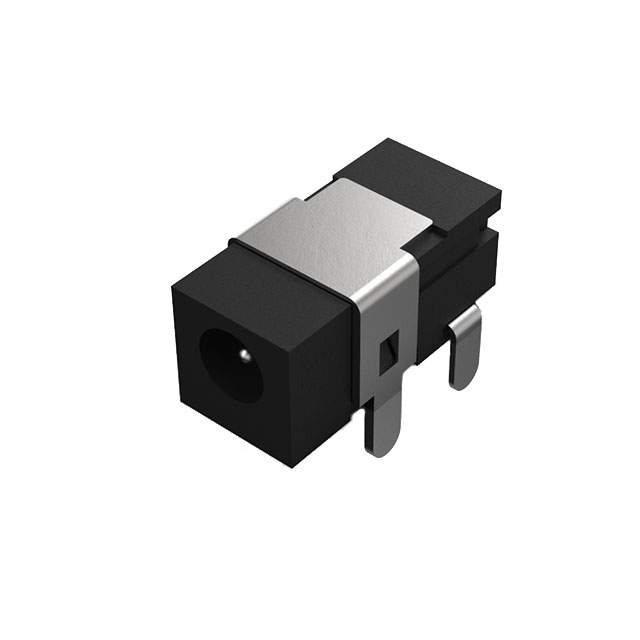

Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") Through Hole, Right Angle
Specifications
- Gender
- Male
- Series
- DCJ065-15
- Features
- Board Guide
- Includes
- -
- Packaging
- Bulk
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- GCT
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.026" (0.65mm ID), 0.110" (2.80mm OD) Contact MaterialBrass, Stainless Steel Housing MaterialPolybutylene Terephthalate (PBT) Internal Switch(s)Single Switch, Normally Closed Base Product NumberDCJ065 Current Rating (Amps)2.5 A Operating Temperature-20°C ~ 70°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter0.70mm ID (0.028"), 2.35mm OD (0.093") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥7.44000 |
| Bulk | 10 | ¥6.31000 |
| Bulk | 25 | ¥5.91480 |
| Bulk | 50 | ¥5.63180 |
| Bulk | 100 | ¥5.36310 |
| Bulk | 250 | ¥5.02684 |
| Bulk | 500 | ¥4.78668 |
| Bulk | 1,000 | ¥4.55801 |
| Bulk | 3,000 | ¥4.21805 |
