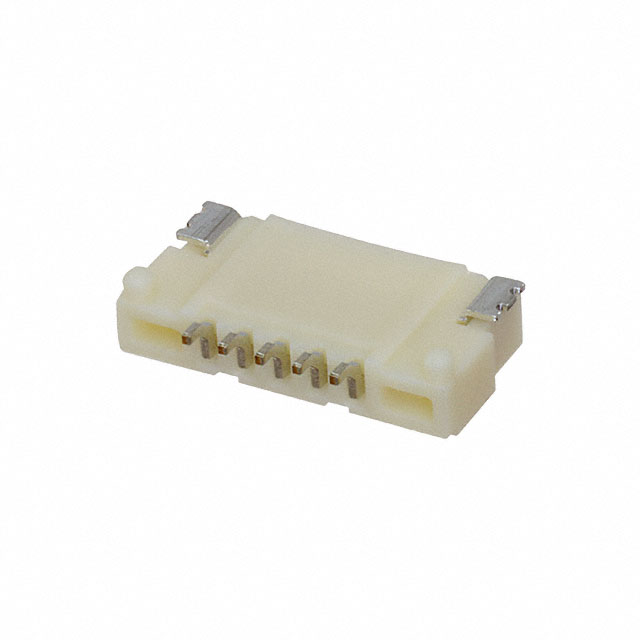

DF14A-5P-1.25H(52)
CONN HEADER SMD R/A 5POS 1.25MM
Manufacturer: Hirose Electric Co LtdIC code: 26-DF14A-5P-1.25H(52)TR-ND - Tape & Reel (TR) || 26-DF14A-5P-1.25H(52)CT-ND - Cut Tape (CT) || 26-DF14A-5P-1.25H(52)DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm)
Specifications
- Mfr
- Hirose Electric Co Ltd
- Style
- Board to Cable/Wire
- Series
- DF14
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
Pitch - Mating0.049" (1.25mm) Insulation Height0.098" (2.50mm) Insulation MaterialPolyamide (PA), Nylon Contact Finish - PostGold Operating Temperature-35°C ~ 85°C Contact Finish - MatingGold Contact Length - Mating0.086" (2.20mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post3.94µin (0.100µm) Contact Finish Thickness - Mating3.94µin (0.100µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 1,000 | ¥5.71117 |
| Tape & Reel (TR) | 2,000 | ¥5.43864 |
| Tape & Reel (TR) | 3,000 | ¥5.28530 |
| Tape & Reel (TR) | 5,000 | ¥5.09830 |
| Tape & Reel (TR) | 7,000 | ¥4.97878 |
| Tape & Reel (TR) | 10,000 | ¥4.85517 |
| Cut Tape (CT) | 1 | ¥9.35000 |
| Cut Tape (CT) | 10 | ¥7.90600 |
| Cut Tape (CT) | 100 | ¥6.71940 |
| Cut Tape (CT) | 500 | ¥5.99756 |
| Digi-Reel® | 1 | ¥10.42000 |
| Digi-Reel® | 10 | ¥8.79900 |
| Digi-Reel® | 100 | ¥7.90200 |
| Digi-Reel® | 500 | ¥6.46498 |
