Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

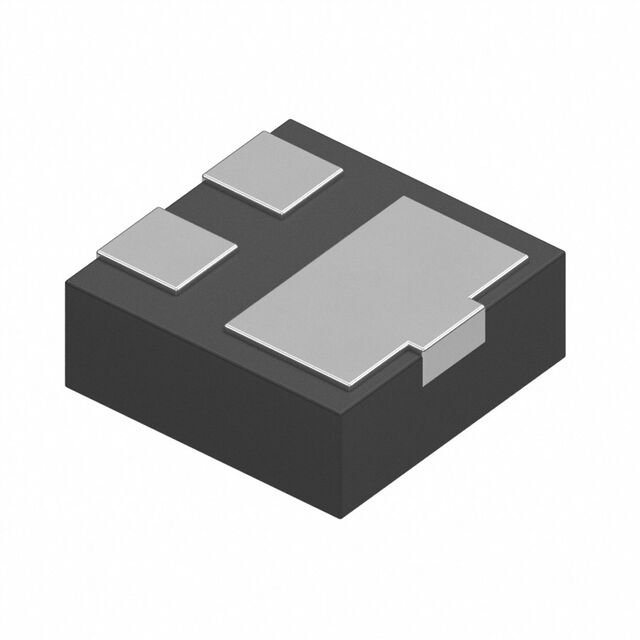

N-Channel 30 V 3.4A (Ta) 500mW Surface Mount X2-DFN1010-3
Specifications
- Mfr
- Diodes Incorporated
- Grade
- -
- Series
- -
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 3-XFDFN
- Vgs(th) (Max) @ Id
- 2.5V @ 250µA
Operating Temperature-55°C ~ 150°C (TJ) Rds On (Max) @ Id, Vgs65mOhm @ 3.2A, 10V Power Dissipation (Max)500mW Supplier Device PackageX2-DFN1010-3 Gate Charge (Qg) (Max) @ Vgs4.5 nC @ 10 V Drain to Source Voltage (Vdss)30 V Input Capacitance (Ciss) (Max) @ Vds190 pF @ 15 V Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V Current - Continuous Drain (Id) @ 25°C3.4A (Ta) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.31000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.05100 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.29010 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥0.96114 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥0.85470 |
| Tape & Reel (TR) | 3,000 | ¥0.69752 |
| Tape & Reel (TR) | 6,000 | ¥0.63118 |
| Tape & Reel (TR) | 9,000 | ¥0.56624 |
| Tape & Reel (TR) | 15,000 | ¥0.55932 |
| Tape & Reel (TR) | 21,000 | ¥0.53679 |
| Tape & Reel (TR) | 30,000 | ¥0.51585 |
| Tape & Reel (TR) | 75,000 | ¥0.46682 |
| Tape & Reel (TR) | 150,000 | ¥0.46519 |
